This video will walk you through what it's like to visit a Sparks Fitness Showroom and take you through a home delivery from start to finish.

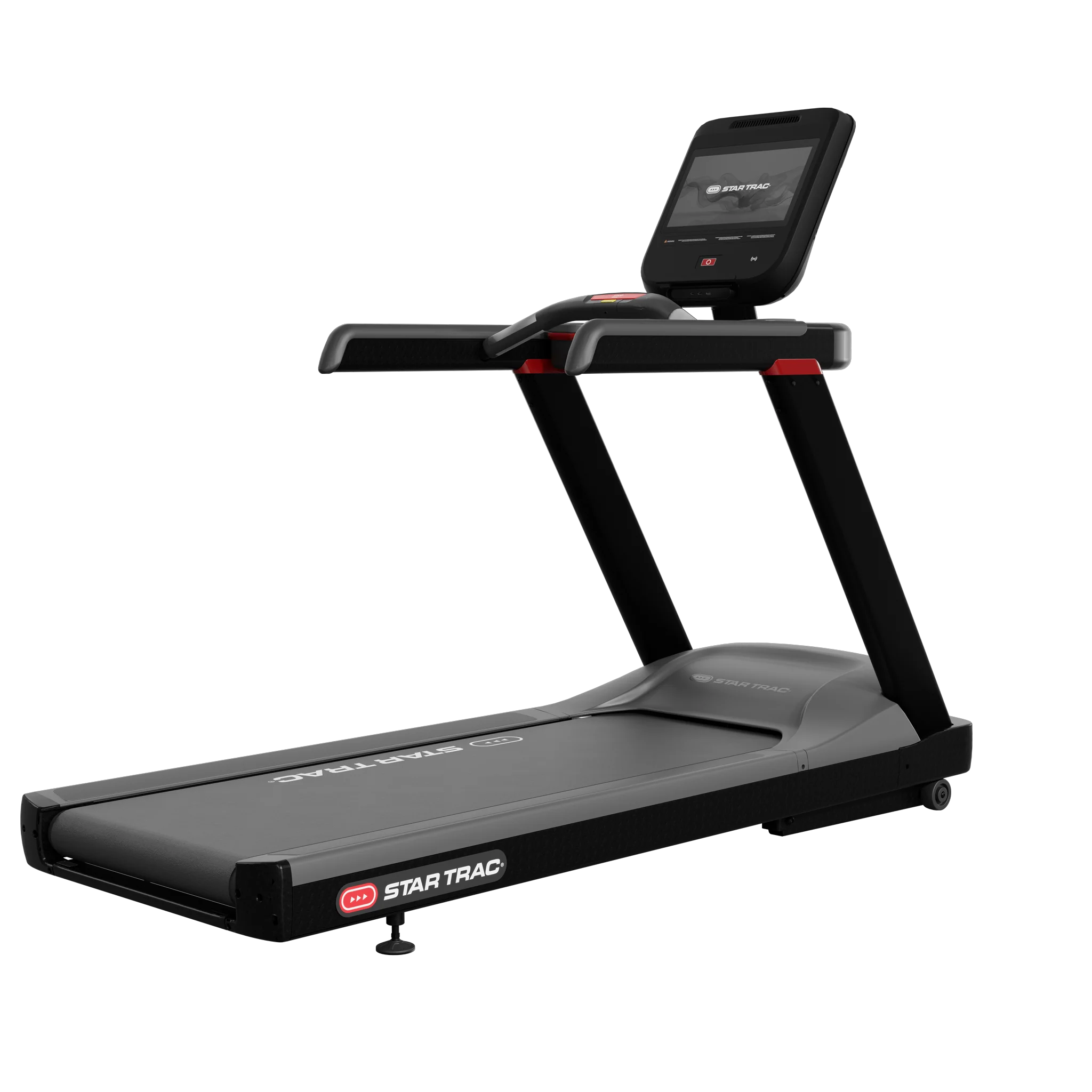

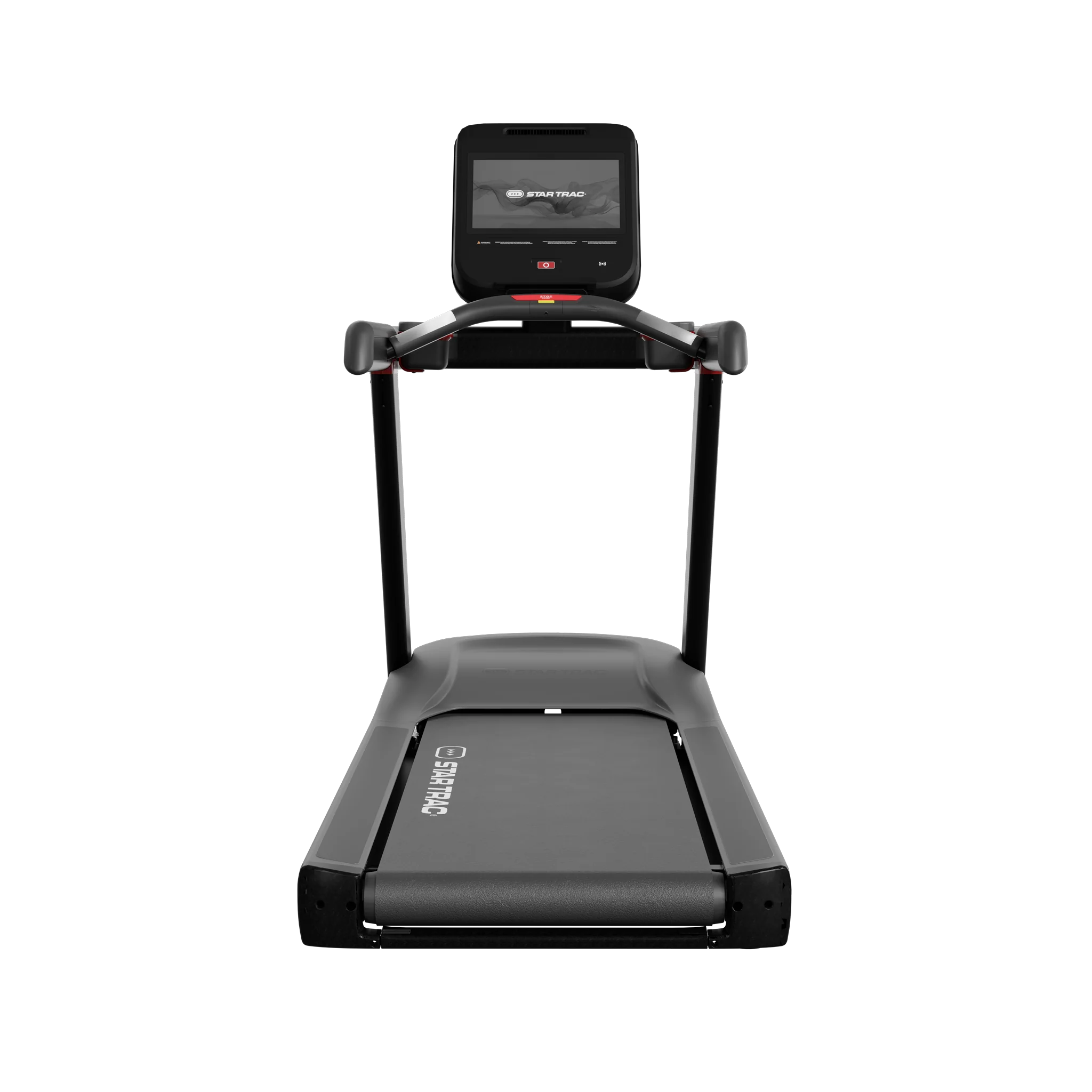

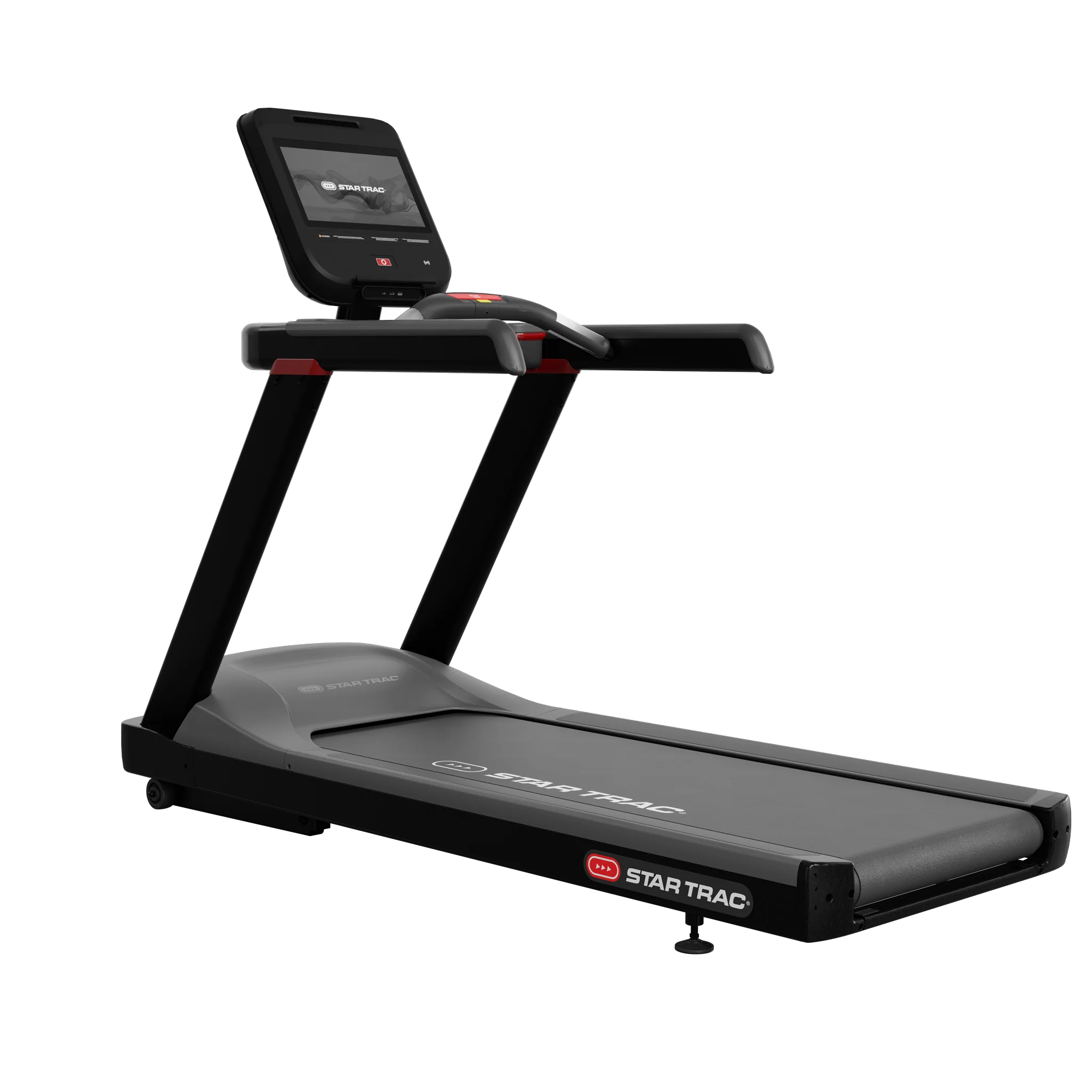

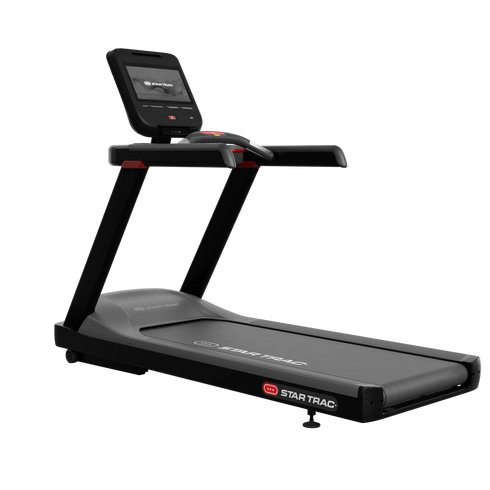

LEARN MOREThe 4-Series cardio line from Star Trac® is the perfect solution for the hospitality and multi-housing markets. With premium full color flat panel displays, quick select adjustment keys, and optional personal viewing screen, the 4 series provides smaller facilities with the look and performance of a full commercial product.
W: 32 IN (81 CM)
L: 81 IN (206 CM)
H: 60 IN (152 CM)
MAX USER WEIGHT: 450 LBS (205 KG)
PRODUCT WEIGHT: 399 LBS (181 KG)
• Choose between 4 Series 15″ Embedded, 10″ Touchscreen & 10″ LCD versions of the new OpenHub™ family of consoles
• Quick Key selects for speed and incline allow for one-touch changes on the fly
• Warm bar provides contact HR and stop button within easy reach of user
• Integrated USB port provides charging capability for user devices
• Compatible with 8-Series PVS entertainment screens
• Contact and telemetry heart rate
• Multiple holders for water bottles and user devices
• Speed range: 0.5-12mph (0.8-19kmh)
• Incline range: 0-15%
• 3 HP DC motor
• Star Trac’s popular personal fan for comfort
• 22” (55.5 cm) wide belt
• 7” (17.7 cm) step-up height
• Electrical requirements: 110V/15 Amp standard outlet; or 220V/15 Amp
• Powder-coated Steel frame
| MATERIAL | Powder Coated Steel Frame |
|---|---|
| CUSTOMIZABLE | Paint color options approval required |
| STANDARD COLOR OPTIONS | 60 Black |
| LENGTH | 81in (206cm) |
| WIDTH | 32in (81cm) |
| HEIGHT | 60in (152cm) |
| PRODUCT WEIGHT | 399lbs (181kg) |
| SHIPPING DIMENSIONS | 89in x 36in x 23in (226cm x 92cm x 59cm) |
| SHIPPING WEIGHT | 442lbs (201kg) |
| DISPLAY | 4 Series 15” Touchscreen | 4 Series 10" Touchscreen | 4 Series 10" |
|---|---|---|---|
| DISPLAY TYPE | Capacitive Touchscreen | Capacitive Touchscreen | Full Color LCD Display, non-touch |
| MULTI-LANGUAGE OPTIONS | English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Finnish, Danish, Chinese, Japanese, Turkish, Polish, Russian, Hebrew, Czech, Slovak | English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Chinese, Japanese, Polish | English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Chinese, Japanese, Polish |
| PRE-PROGRAMMABLE WORK OUTS | Yes, 20+ | Yes, 20+ | Yes, 20+ |
| QUICK START OPTIONS | Yes, single button start options | Yes, single button start options | Yes, single button start options |
| TV TUNER ENABLED | Yes (Global TV tuner options) | No | No |
| ETHERNET AND WIFI ENABLED | Yes | No | No |
| BLUETOOTH DATA TRACKING/APP CONNECTIVITY | Yes | No | No |
| BLUETOOTH HEADPHONES | Yes | No | No |
| BLUETOOTH HEART RATE | Yes | No | No |
| APPLE GYMKIT/SAMSUNG GALAXY WATCH CONNECTIVITY | Yes | No | No |
| RUNTV INTEGRATED WORKOUT VIDEOS | Yes | No | No |
| INTEGRATED WEB-BASED APPS | Yes | No | No |
| CUSTOMIZABLE HOME SCREEN | Yes | No | No |
| HDMI STREAMING | Yes; cables not included | No | No |
| USB | USB port for software updates and device charging; cables not included | USB port for software updates and device charging; cables not included | USB port for software updates and device charging; cables not included |
| RFID | Optional | No | No |
| IPTV/SET TOP BOX COMPATIBLE | Yes, add-on accessories required | No | No |
| ANT+ FOR GROUP DISPLAY | Yes | No | No |
| PERSONAL FAN | Yes, programmable auto start | Yes, programmable auto start | Yes, programmable auto start |
| ASSET MANAGEMENT | Ecofit Optiona | Ecofit Optional | Ecofit Optiona |
| TABLET HOLDER | Integrated front | Integrated front | Integrated front |
| PVS | No | No | Optional |
| 800/900 MHZ RECEIVER | No | No | No |
| PVS | 4 Series |
|---|---|
| DISPLAY TYPE | 15.6" HD LED |
| RESOLUTION | 1366 x 768 |
| TUNER OPTIONS | 1) ATSC/NTSC/QAM 2) PAL/DVB-T/DVB-C |
| DIGITAL AND ANALOG SUPPORT | Yes |
| SIGNAL INPUTS | Coax, HDMI |
| INPUT RF SIGNAL RANGE | -70 dBm(Min) ~ - 10 dBm(Max) |
| CLOSE CAPTION | Yes |
| HEADPHONE JACK | 3.5mm on Display |
| DECK SYSTEM | Reversible MDF deck with phenolic coating |
|---|---|
| RUNNING BELT SYSTEM | 22in (55cm) wide belt |
| SIZE OF RUNNING SURFACE | 60in x 22in (152cm x 55cm) |
| ABSORPTION SYSTEM | Triple cell cushioning system provides maximum shock absorption making the entire deck a sweet spot |
| STEP UP HEIGHT | 7in (17cm) |
| INCLINE RANGE | 0-15% max incline |
| SPEED RANGESPEED RANGE | 0.5-12.5mph (0.5-20kmh) |
| HEART RATE MEASUREMENT SYSTEM | Telemetry and contact HR |
| CENTER CONTROLS BAR | Warm bar with contact HR and Emergency Stop |
| DISPLAY | Choose from Full Color 10" LCD, 10" Capacitive Touchscreen or 15" OpenHub Touchscreen |
| USER DETECT SYSTEM | Yes, programmable on/off |
| ACCESSORIES | Bottleholder, pre-wired for PVS entertainment, USB port |
| MAX USER WEIGHT | 450lb (205kg) |
| DRIVE SYSTEM | 3 HP DC motor |
| ELECTRICAL REQUIREMENTS | 110V/15 Amp with standard outlet; or 220V/15 Amp |
| ADDITIONAL FEATURES | 3.5in rollers |
commercial warranty
10 year frame
5 year parts
2 year labor
