LEARN MORE| User group | Households |
| Power output | 8 kW |
| Control type | Controlled by manual switches |
| Installation location | Wall |
| Installation orientation | Vertically |
| Technical documentation languages | EN FR |
| Color | Stainless Steel |
| Main material | Steel |
| Steam output capacity (kg/h) | |
| Temperature adjustment range ˚C, min. | 50 °C |
| Temperature adjustment range ˚C, max. | 80 °C |
| Operating time adjustment range, family sauna, min. | 50 h |
| Operating time adjustment range, family sauna, max. | 80 h |
| Ambient temperature min | |
| Storage temperature min | 0 °C |
| Storage temperature max | 50 °C |
| Use environment | Interior - wet area |
| Remote use options | No |
| Prime energy/fuel | |
| Warranty Consumer (months) | |
| Warranty Professional (months) | |
| Warranty Community (months) |
| MODEL | HSWS8U1B |
| Product height | 701 mm |
| Product width | 430 mm |
| Product depth (mm) | 258 mm |
| Stone sizes | Ø5–10 cm |
| Net weight (kg) | 16.6 kg |
| Stone amount (kg) | 20 kg |
| Water container volume |
| Safety distance front (non-combustible materials) | |
| Safety distance front (combustible materials) | |
| Safety distance side (non-combustible materials) | |
| safety distance to the side wall (combustible materials) | |
| Safety distance behind (non-combustible materials) | |
| Safety distance behind (combustible materials) | |
| Safety distance right side (combustible materials) | |
| Safety distance right side non-combustible materials | |
| Safety distance left side (combustible materials) | |
| Safety distance left side non-combustible materials | |
| Safety distance (Ceiling) | |
| Safety distance (Floor 3ph) (depends on connections and therefore from output, star/delta) | |
| Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) | |
| min. height for assembly | 80 mm |
| Installation opening height | 1900 mm |
| Installation opening width | 580 mm |
| Installation opening depth | 335 mm |
| Room min. recommended volume | 5 m³ |
| Room max. recommended volume | 12 m³ |
| Room min. height(depends on connections and therefore from output, star/delta) | 1900 mm |
| Power table | 8 |
| IP Class (like: IPX4) | IPX4 |
| Electrical Frequency | 60 Hz |
| Fuses (400V3N~) pcs x ampers | |
| Fuse (230V1N~) ampers | |
| Fuses (230V 3~) pcs x ampers | |
| Fuse (240VAC, 1 ph, 60Hz) pcs x ampers | min. 33.4A / 2 groups: min 22.3A |
| Supply cable (400V 3N~) mm2 | |
| Supply cable (230V 1N~) mm2 | |
| Supply cable (230V 3~) pcs x mm2 | |
| Supply cable (240VAC, 1ph, 60Hz) pcs x ampers | AWG8/ 2groups: AWG10 |
| Electrical group options |

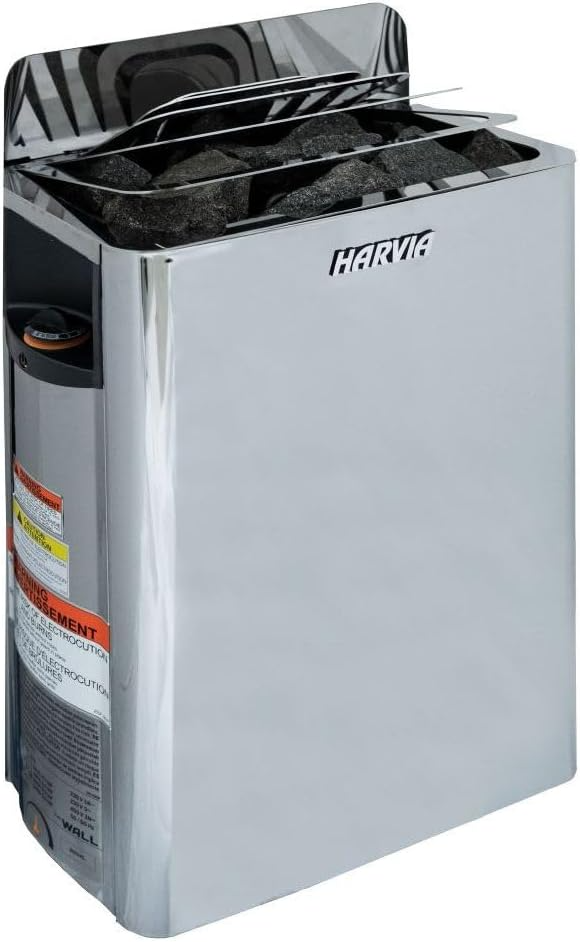

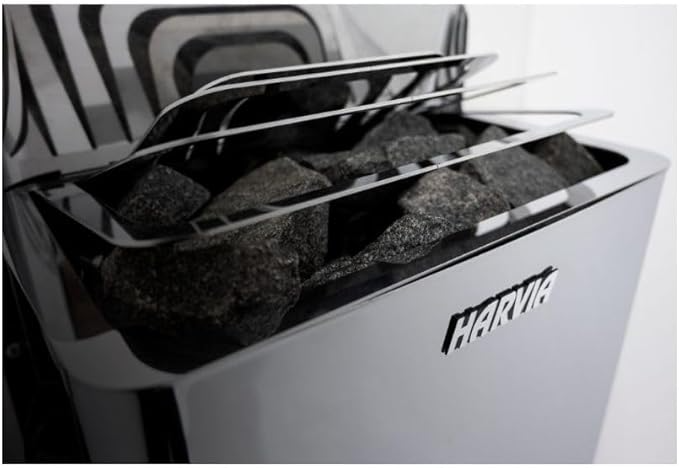

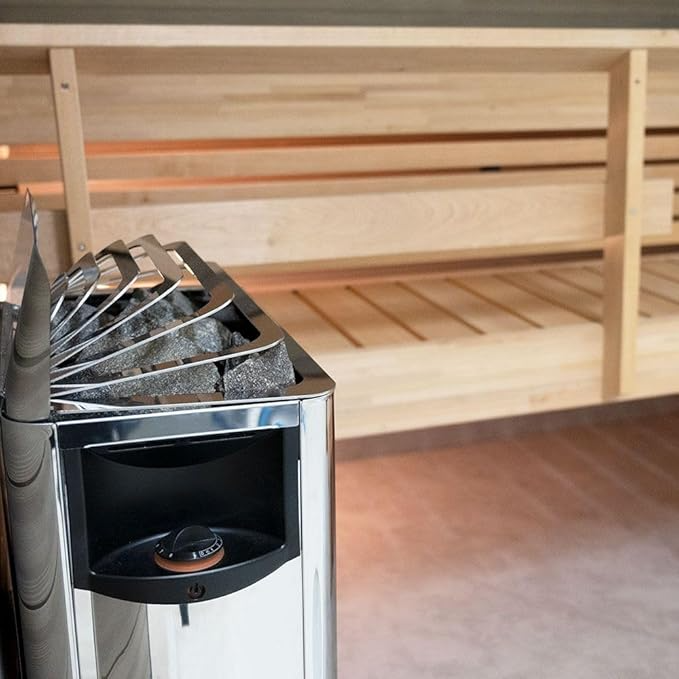

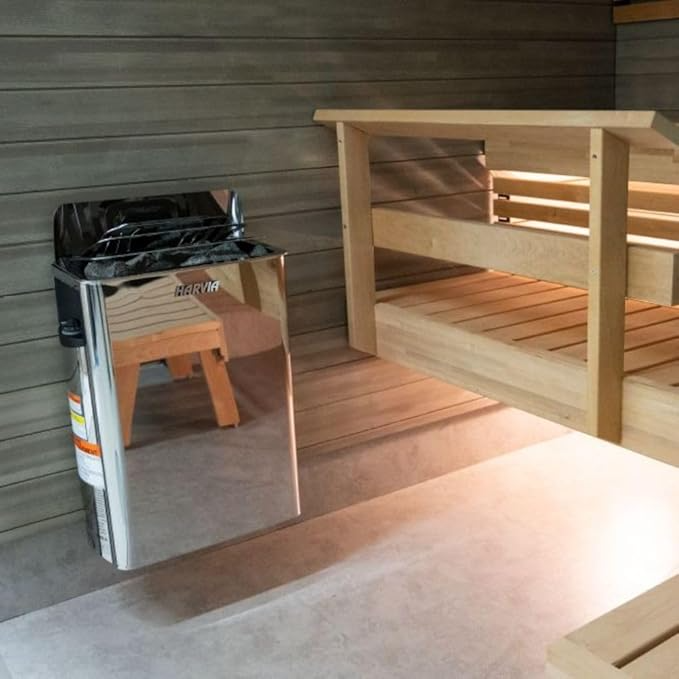

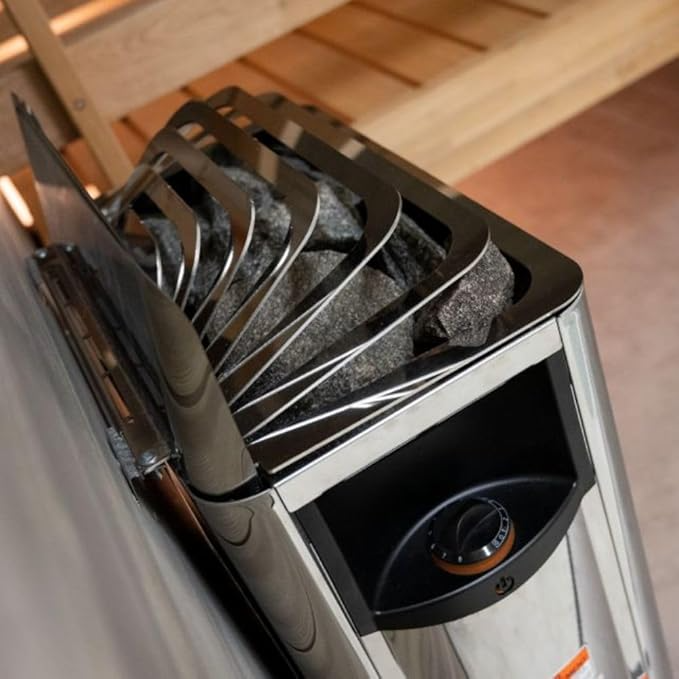

Harvia The Wall electric heater for medium-sized sauna rooms combines minimalistic Scandinavian design and user-friendly operation with top quality. The Wall is a compact, stylish, and reliable ensemble, that is suitable for various types of sauna interiors. The heater's stylish shiny surface provides a modern touch for your sauna. With the illuminated and easy-to-use control switches you can adjust the heater's temperature and timer to start whenever you need it ready - such as after an exercise session or a workday. The heater can be installed in both left and right-handed directions. The practical form provides more flexibility when designing a sauna interior, for example, The Wall can be integrated in the sauna bench. Long service life is guaranteed by high quality materials and a smart, sturdy structure. Extra-long heating elements will last longer and transfer heat more smoothly to the stones and sauna room. The Wall heater's design allows improved air circulation making the sauna room's temperature more consistent, so that you can enjoy steady warmth. The unique Harvia mounting/wall rack included in the delivery determines the minimum safety distance between the heater and the floor. Installing the heater is quick and easy.
