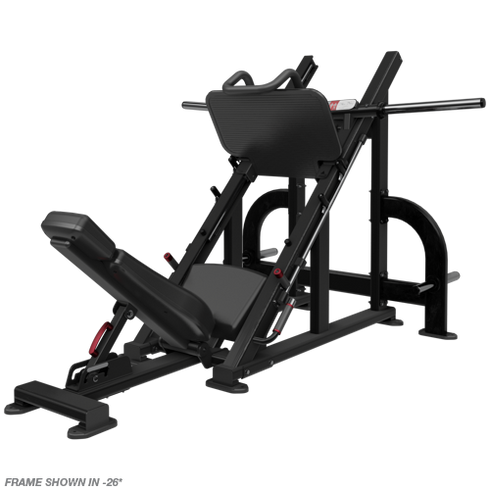

Nautilus Angled Leg Press

Nautilus Angled Leg Press
Nautilus Angled Leg Press
Nautilus Angled Leg Press
Nautilus Angled Leg Press

Nautilus Angled Leg Press

  • Sale
  • Regular price $3,799.00
  • & FREE Shipping

Fast Free Shipping - Buy Now, Pay Later


DETAILS

Working out with plates is one of the most effective ways to train, which is why plate loaded machines are a staple for facilities. Whether you are looking to build a full strength circuit or round out your offering with specific pieces, Nautilus Plate Loaded offers the best machines for plate workouts. Each machine is built strong enough to stand up to full commercial use and is designed to make plate workouts as effective, rewarding and safe as possible.

 W: 72 IN (182 CM)
L: 90 IN (229 CM)
H: 58 IN (147 CM)
STACK WEIGHT: N/A
OVERALL WEIGHT: 569 LBS (258 KG)
SHIPPING WEIGHT: 651 LBS (295 KG)

*Frames colors 19, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.

FEATURES

The angled Leg Press follow Nautilus’s trademark combination of safety and function. Adjustable back support allows proper positioning and comfort for each user while safety stops and integrated user handles provide safety.

  • Adjustable angle for back support
  • Integrated plate storage
  • Two start options for range of motion
  • Easy to reach and operate safety stops
  • Integrated user handle for safe entry and exit
  • 45 degree machine angle
  • 100 lb (45 kg) carriage weight
  • 900 lb (409 kg) max load capacity
  • Integrated Olympic plate storage
  • Rubber feet for floor protection

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONYes, fixed, linear path of motion with 45 degree machine angle and two start options for range of motion
ASSISTED ADJUSTMENTSGravity assisted with adjustable angle for back support
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes
UNILATERAL OR BILATERAL MOVEMENTN/A
CONVERGING OR DIVERGING MOVEMENTSN/A
PULLEY RATION/A

ANGLED LEG PRESS N P- L1141

W72 IN (182 CM)
L90 IN (229 CM)
H58 IN (147 CM)
STACK WEIGHTN/A
OVERALL WEIGHT569 LBS (258 KG)
SHIPPING WEIGHT651 LBS (295 KG)

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHTN/A
INCREMENTAL WEIGHT SYSTEMN/A
WEIGHT STACK TOWER HEIGHTN/A
PLATE LOADED100 lb (45 kg) carriage weight
WEIGHT STORAGE SOLUTIONIntegrated Olympic plate storage
LNL TECHNOLOGYN/A
ADD-ON RESISTANCE AVAILABLE900 lb (409 kg) max load capacity
WEIGHT STACK SHROUD SPECIFICATIONSN/A

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver, White, Black
STANDARD UPHOLSTERY COLOR OPTIONSBlack
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEN/A
CABLE VS. BELT DRIVEN TRANSMISSIONN/A
BOLT DOWN LOCATIONS DEFINEDYes
INTEGRATED LEVELING SYSTEMNo, rubber feet for floor protection
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga

USER SPECIFIC INFORMATION

STATIC PLACARDSYes
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLEYes
ANIMATED LENTICULARNo
SAFETY CATCH & STOPSEasy to reach and operate safety stops with an integrated user handle for safe entry and exit
WATER BOTTLE HOLDERNo
PHONE HOLDERNo
GRIP SPECIFICATIONSRubber, smaller grips.
FOOT PLATFORMOversized angled foot platform to accommodate users of all sizes
CONTOURED PADSYes
BELT STABILIZATION SYSTEMN/A
