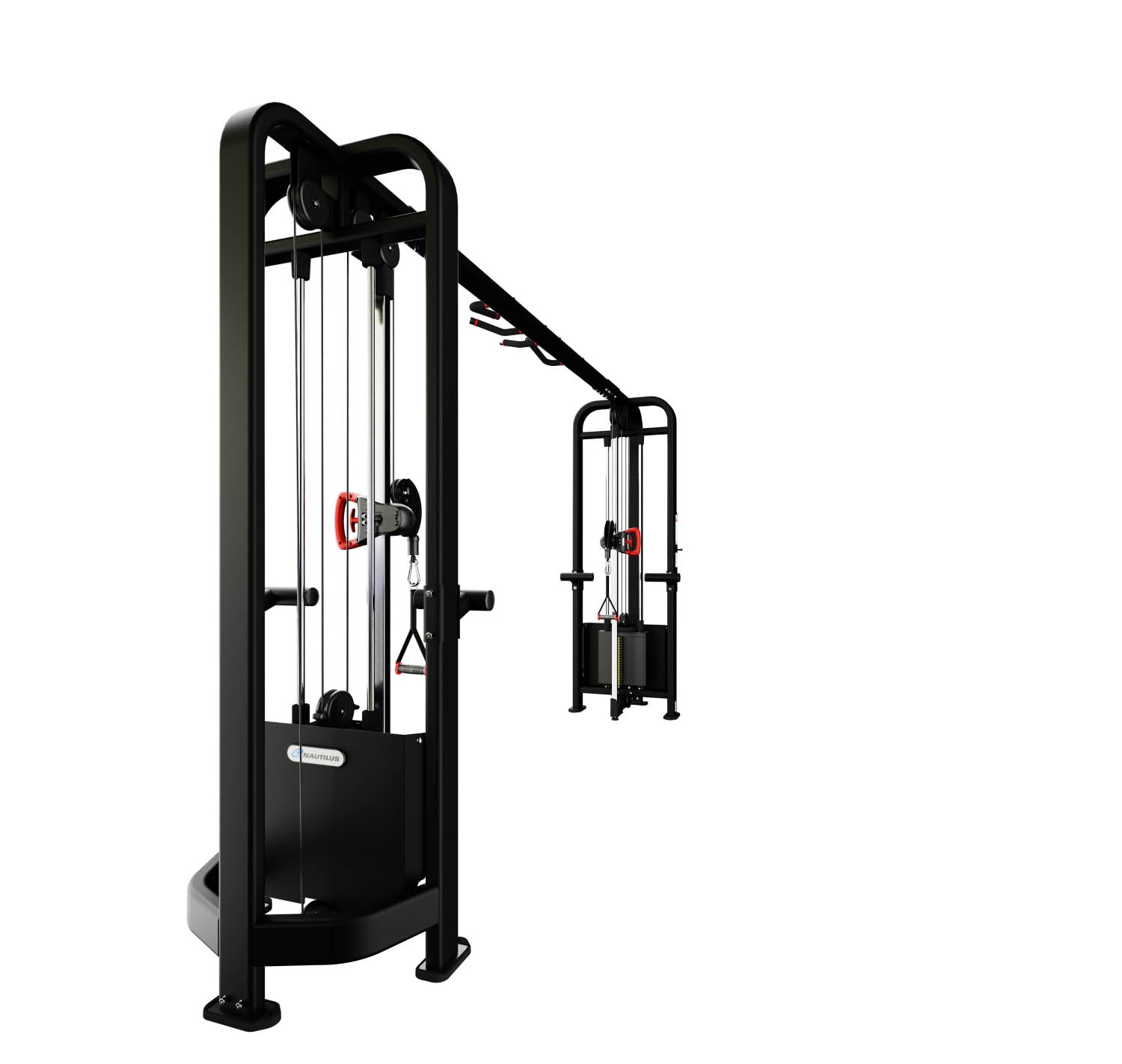

Nautilus Cable Cross Over

Nautilus Cable Cross Over
Nautilus Cable Cross Over
Nautilus Cable Cross Over
Nautilus Cable Cross Over

Nautilus Cable Cross Over

  • Sale
  • Regular price $7,999.00


icon image

No Interest Financing

Delivery Options (select at checkout)

  • icon image

    Delivery, Installation & Setup:

  • icon image

    Free Delivery:

  • icon image
  • icon image

    Keeping you and our employees safe


DETAILS

IMPROVED VERSATILITY. REDUCED SPACE.

 Sometimes you have space for multiple pieces of equipment and sometimes you don’t. That is exactly why our Multi-Stations can be such a great option when you’re still looking for the total workout experience and commercial feel while needing to maximize space. Each of our multi-stations have the smallest footprint possible while combining the most essential and core elements from our strength lines. Add in great features like swiveling pulleys on the Lat Pull Down, Low Row and Triceps Press and fully adjustable pulleys on the Cable Cross Over System, and you have an economical, space-saving equipment solution that doesn’t look, feel or train like one.

 W: 158 IN (401 CM)
L: 34 IN (86 CM)
H: 91 IN (230 CM)
STACK WEIGHT: 2 X 115.5 LBS (2 X 52.2 KG)
OVERALL WEIGHT: 1010 LB (458 KG)
SHIPPING WEIGHT: 1025 LB (465 KG)

*Frames colors 19, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.

FEATURES

  • Fully adjustable cable cross over system
  • Stabilization handles for balance and control
  • Lock N Load® weight selection system
  • Rubber feet for floor protection
  • 5 lb incremental add-on plates Integrated pull-up station

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONYes
ASSISTED ADJUSTMENTSFully adjustable cable cross over system with spring-loaded pull pin handle for vertical adjustments
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes on all units
UNILATERAL OR BILATERAL MOVEMENTUser defined path of motion with swivel pulley and unlimited high-low cable positioning combinations
CONVERGING OR DIVERGING MOVEMENTSConverging and Diverging motion with user pre-stretch adjustment for optimal start position dependent on SKU
PULLEY RATION/A

CABLE CROSS OVER 9NP-M9201

W158 IN (401 CM)
L34 IN (86 CM)
H91 IN ( (230 CM)
STACK WEIGHT2 X 115.5 LBS (2 X 52.2 KG)
OVERALL WEIGHT1010 LB (458 KG)
SHIPPING WEIGHT1025 LB (465 KG)

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHT2 x 115.5 lbs (2 x 52.2 kg)
INCREMENTAL WEIGHT SYSTEM5 lb incremental add on plates
WEIGHT STACK TOWER HEIGHTN/A
PLATE LOADEDNo
WEIGHT STORAGE SOLUTIONN/A
LNL TECHNOLOGYYes

LOCK N LOAD®WEIGHT SELECTION

Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.

PRODUCTCUSTOMIZATION

We know what it takes to build an authentic, meaningful brand experience. Our customization program is the perfect way to leverage your personal brand and make a strong first impression. Get Nautilus multi-stations with in a variety of custom frame color and upholstery options.

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver
STANDARD UPHOLSTERY COLOR OPTIONSN/A
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEN/A
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEYes with additional fees and extended lead times
CABLE VS. BELT DRIVEN TRANSMISSIONCable drive
BOLT DOWN LOCATIONS DEFINEDYes
INTEGRATED LEVELING SYSTEMNo, rubber feet for floor protection
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga

USER SPECIFIC INFORMATION

STATIC PLACARDSYes, simple and intuitive placard
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLEYes
ANIMATED LENTICULARNo
SAFETY CATCH & STOPSYes
WATER BOTTLE HOLDERNo
PHONE HOLDERNo
GRIP SPECIFICATIONSStabilization handles for balance and control. Rubber, large grips for pushing, smaller grips for pulling. Multiple handle accessory options: add-on package avail 95-0590 (1) triceps rope, (1) aluminum lat bar, (1) aluminum curl bar, (1) aluminum low row handle, (1) single rope handle, (1) v-triceps bar, (1) ankle cuff, (1) walking wait belt
FOOT PLATFORMN/A
CONTOURED PADSN/A
RESTRAINT SYSTEM
N/A
