DETAILS

Working out with plates is one of the most effective ways to train, which is why plate loaded machines are a staple for facilities. Whether you are looking to build a full strength circuit or round out your offering with specific pieces, Nautilus Plate Loaded offers the best machines for plate workouts. Each machine is built strong enough to stand up to full commercial use and is designed to make plate workouts as effective, rewarding and safe as possible.

 W: 72 IN (182 CM)
L: 93 IN (236 CM)
H: 47 IN (119 CM)
STACK WEIGHT: N/A
OVERALL WEIGHT: 446 LBS (202 KG)
SHIPPING WEIGHT: 604 LBS (274 KG)

*Frames colors 19, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.

FEATURES

Designed with all users in mind, the over-sized foot plate allows several different foot positions for safety and workout variety.

  • Integrated plate storage
  • Two start options for range of motion
  • Easy to reach and operate safety stops
  • Integrated user handle for safe entry and exit
  • 35 degree machine angle
  • 80 lb (36 kg) carriage weight
  • 900 lb (409 kg) max load capacity
  • Integrated Olympic plate storage
  • Rubber feet for floor protection

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONYes, fixed, linear path of motion with 35 degree machine angle and two start options for range of motion
ASSISTED ADJUSTMENTSGravity assisted
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes
UNILATERAL OR BILATERAL MOVEMENTN/A
CONVERGING OR DIVERGING MOVEMENTSN/A
PULLEY RATION/A

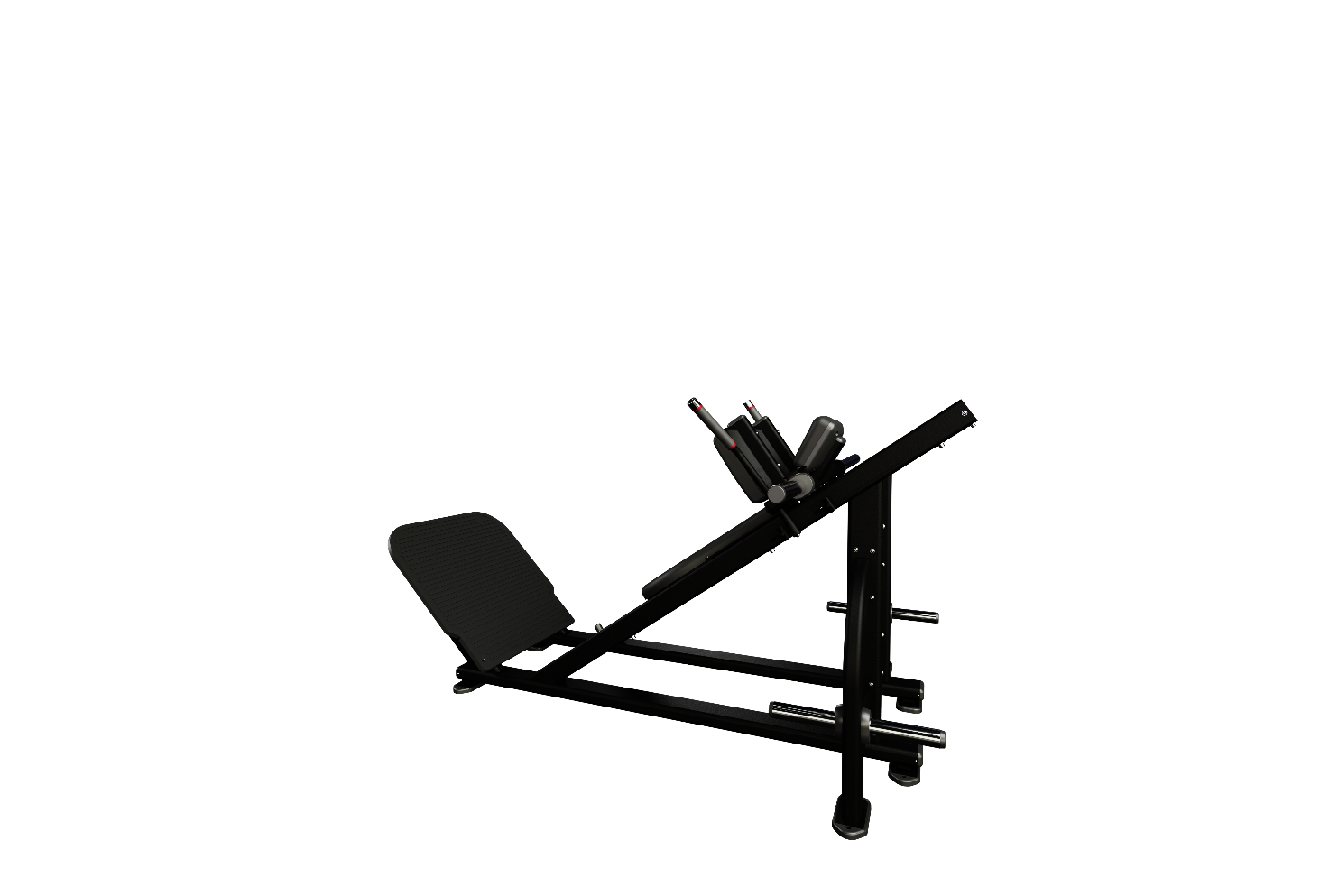

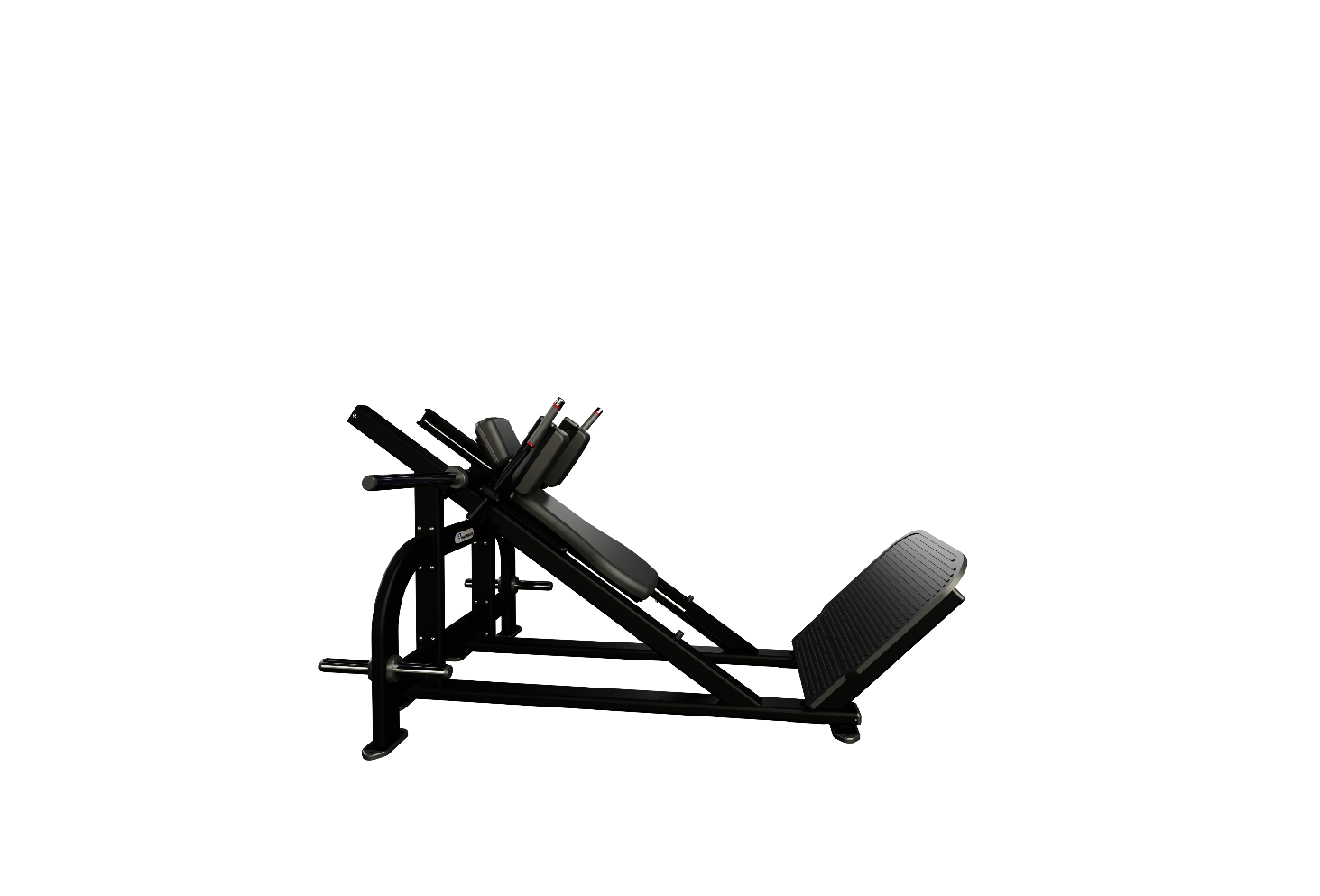

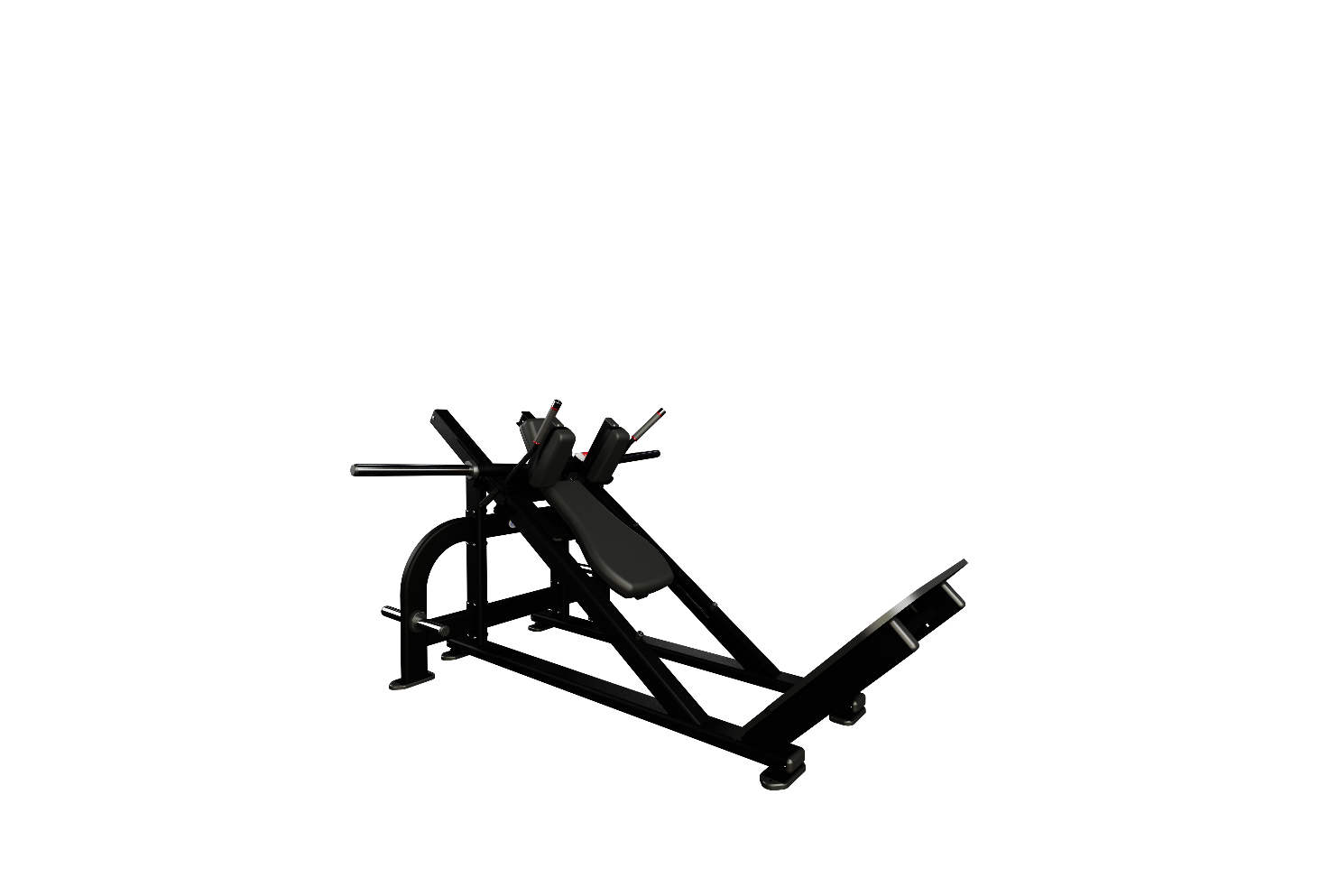

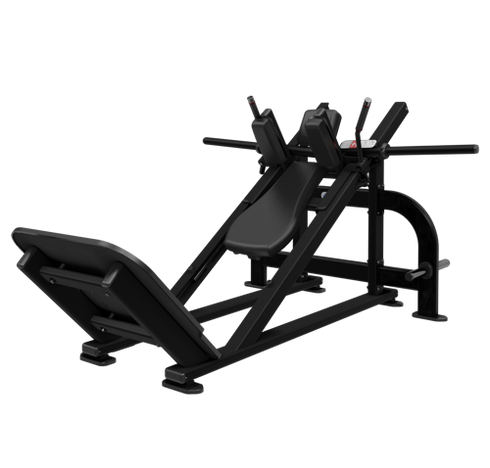

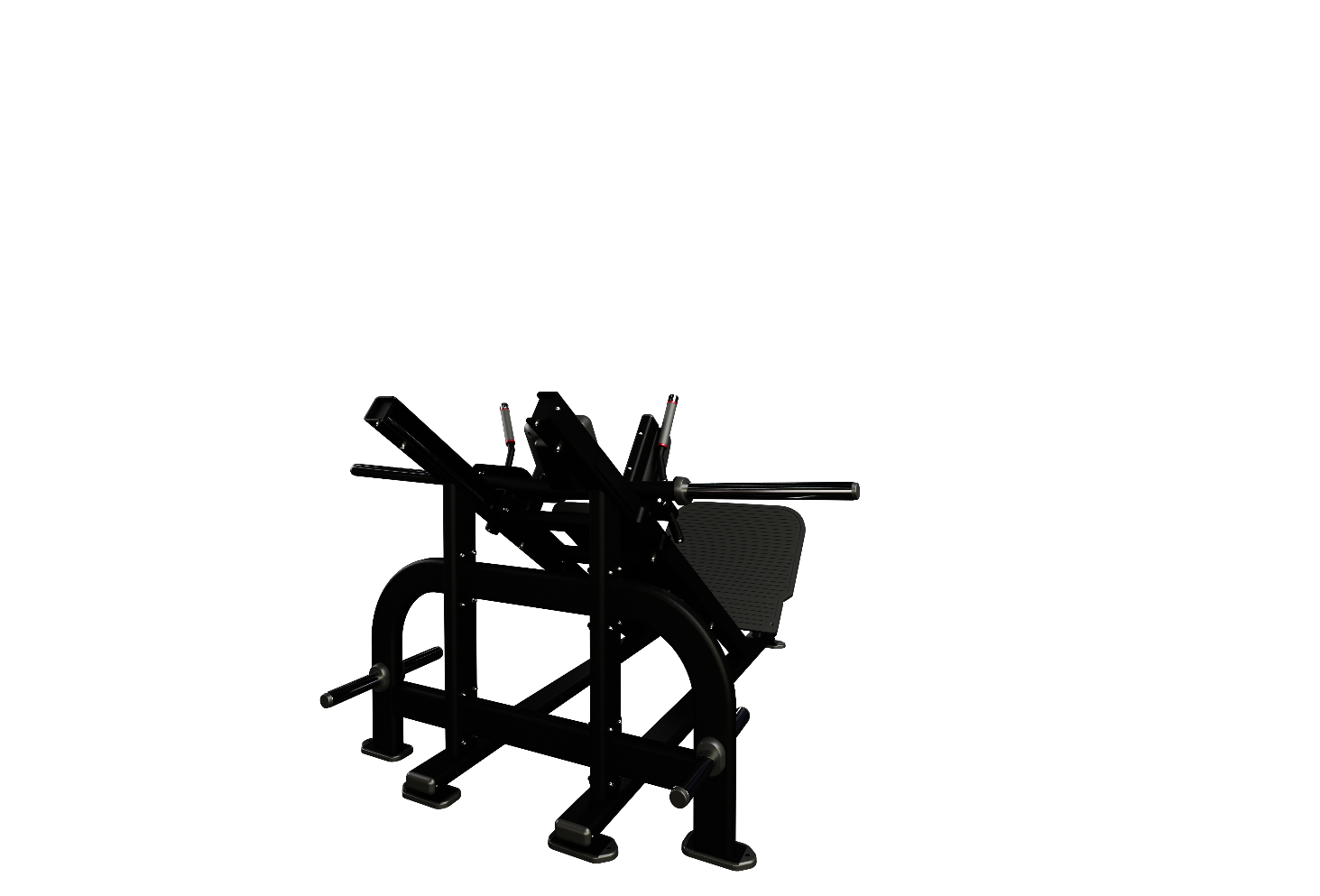

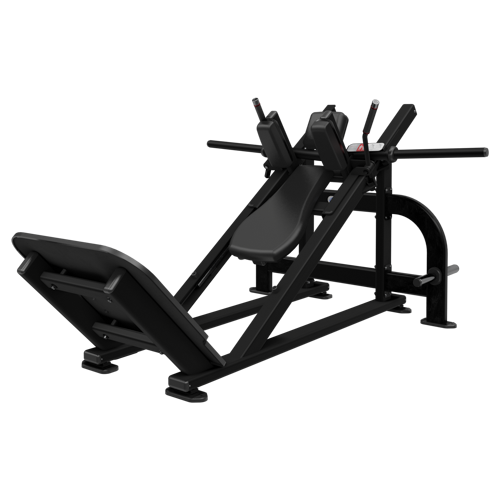

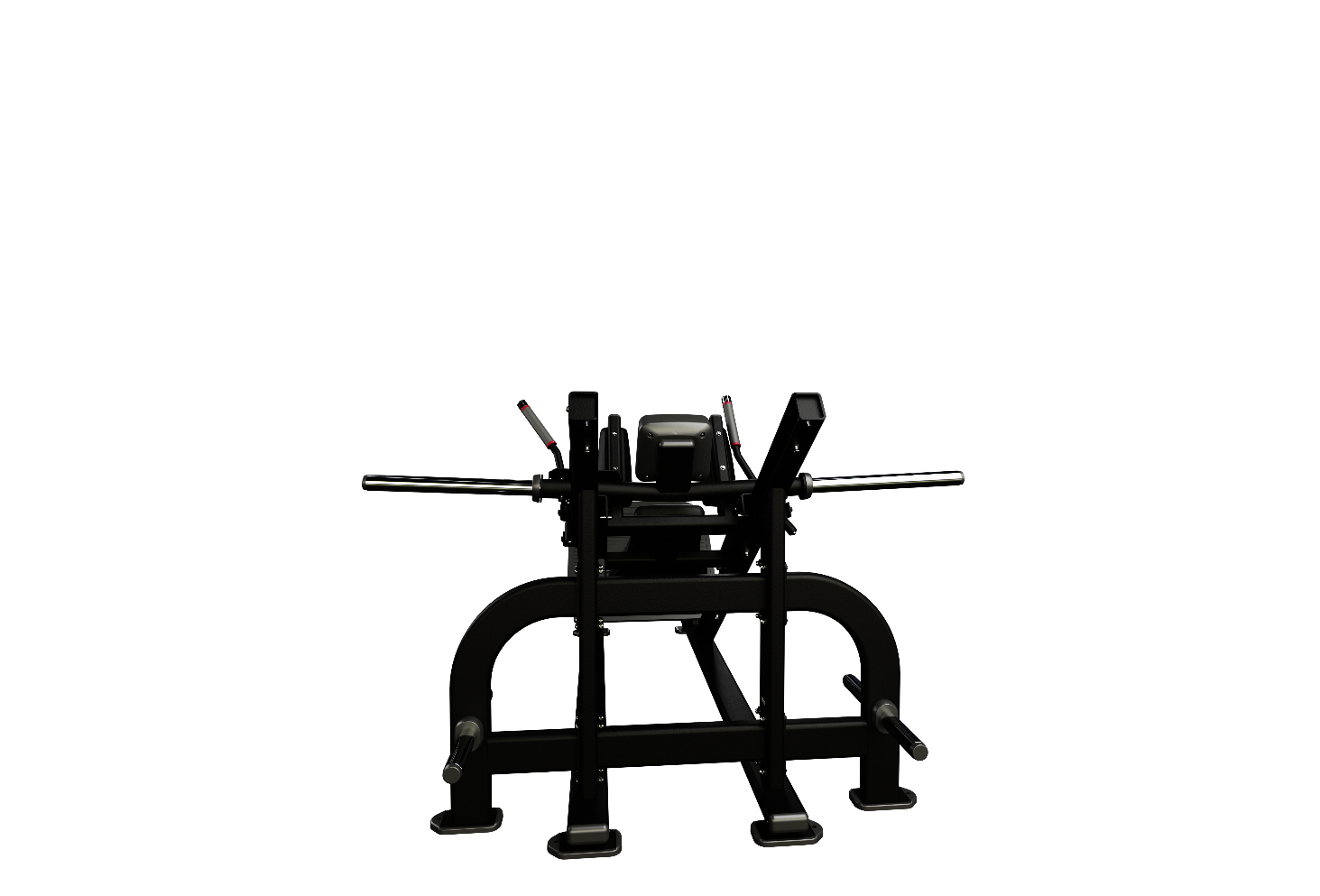

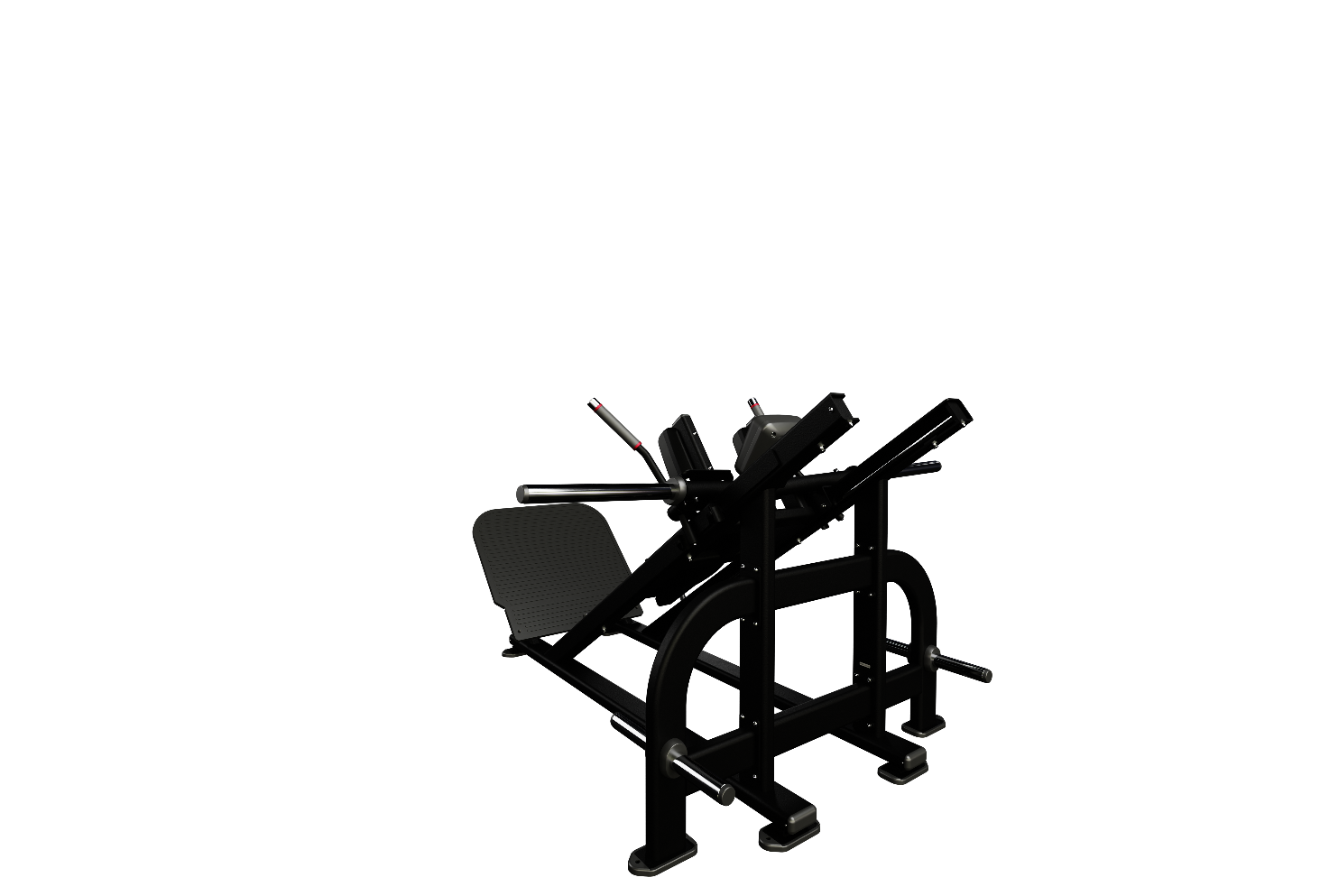

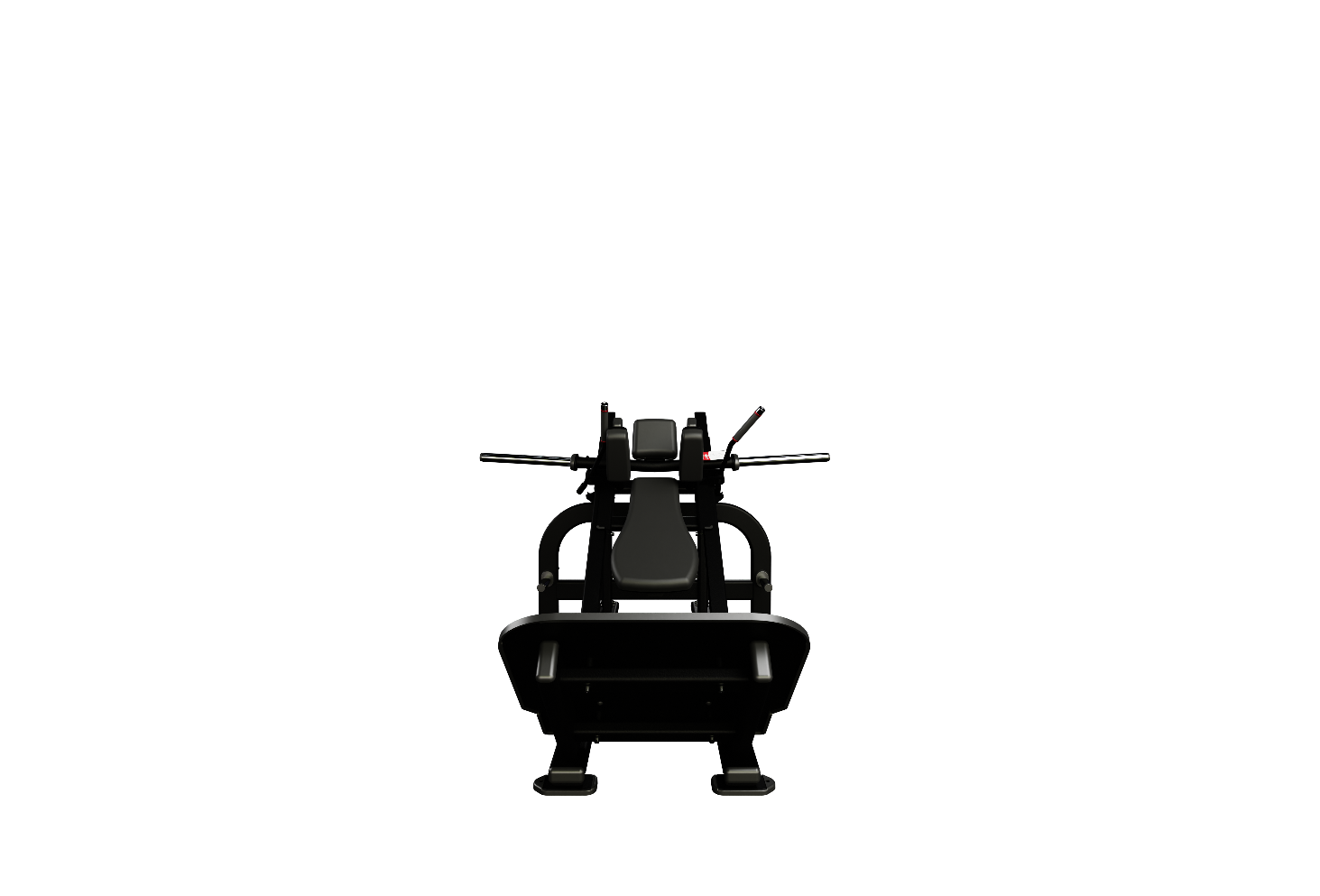

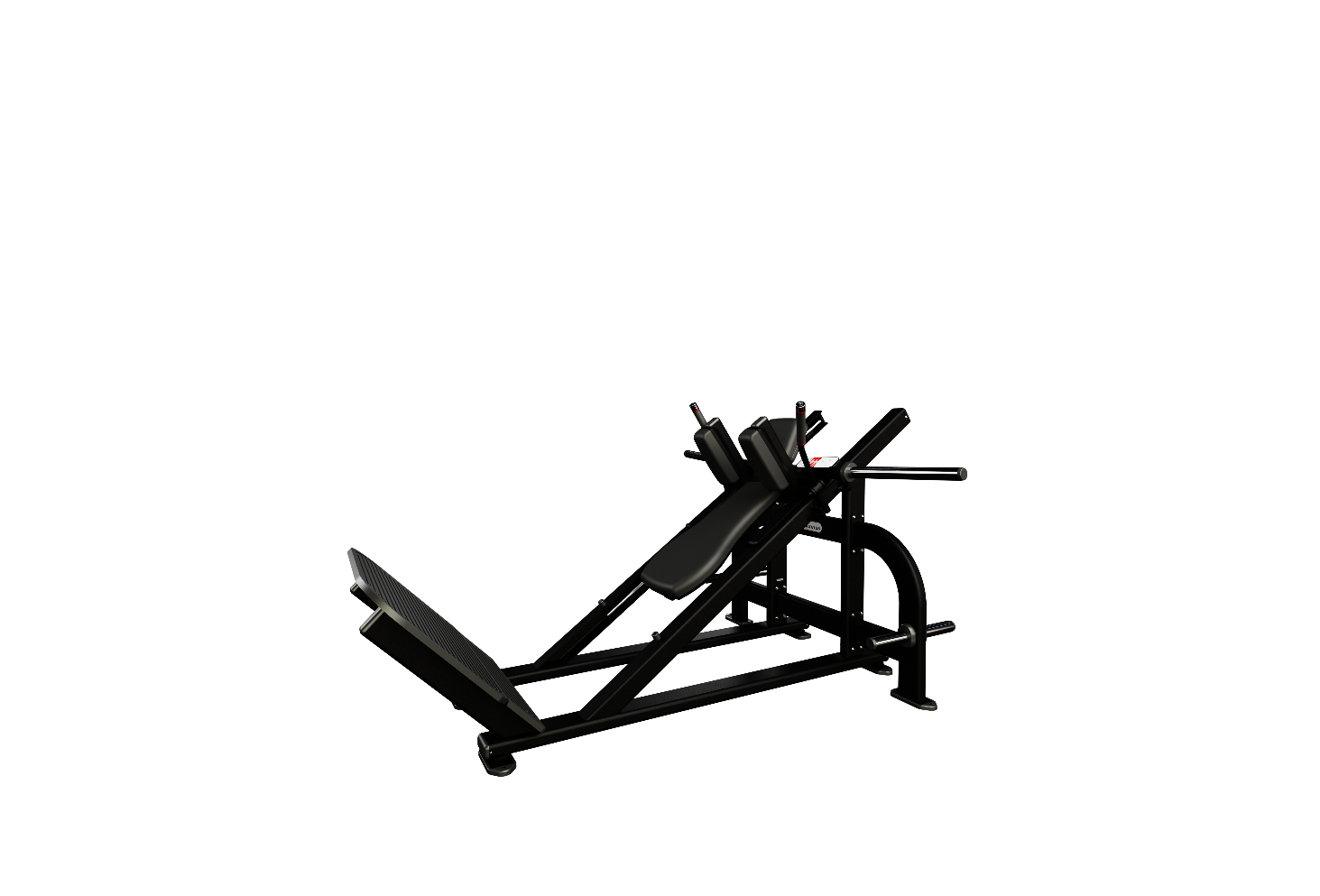

HACK SQUAT N P- L113 0

W72 IN (182 CM)
L93 IN (236 CM)
H47 IN (119 CM)
STACK WEIGHTN/A
OVERALL WEIGHT446 LBS (202 KG)
SHIPPING WEIGHT604 LBS (274 KG)

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHTN/A
INCREMENTAL WEIGHT SYSTEMN/A
WEIGHT STACK TOWER HEIGHTN/A
PLATE LOADED80 lb (36 kg) carriage weight
WEIGHT STORAGE SOLUTIONIntegrated Olympic plate storage
LNL TECHNOLOGYN/A
ADD-ON RESISTANCE AVAILABLE900 lb (409 kg) max load capacity
WEIGHT STACK SHROUD SPECIFICATIONSN/A

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver, White, Black
STANDARD UPHOLSTERY COLOR OPTIONSBlack
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEN/A
CABLE VS. BELT DRIVEN TRANSMISSIONN/A
BOLT DOWN LOCATIONS DEFINEDYes
INTEGRATED LEVELING SYSTEMNo, rubber feet for floor protection
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga

USER SPECIFIC INFORMATION

STATIC PLACARDSYes
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLEYes
ANIMATED LENTICULARNo
SAFETY CATCH & STOPSEasy to reach and operate safety stops with an integrated user handle for safe entry and exit
WATER BOTTLE HOLDERNo
PHONE HOLDERNo
GRIP SPECIFICATIONSRubber, smaller grips.
FOOT PLATFORMOversized angled foot platform to accommodate users of all sizes
CONTOURED PADSNo
BELT STABILIZATION SYSTEMN/A
