DETAILS

A PERFECT FIT FOR EVERY USER

 HumanSport is so simple, intuitive and natural that it feels as if it were custom-built for each and every user. Seven cable-based machines with dual weight stacks provide a complete range of workouts for total body training. When paired with the provided programming designed by our Master Instructors, HumanSport makes a powerful addition to any facility.

 W: 39 IN (99 CM)
L: 43 IN (109 CM)
H: 68 IN (172 CM)
STACK WEIGHT: 2X 88 LBS (2X 40 KG)
OVERALL WEIGHT: 655 LBS (298 KG)
SHIPPING WEIGHT: 767 LBS (348 KG

*Frames colors 13, 25, 26 and 60 and carbon fiber trim are available at no cost but longer lead times apply, varies by region.

FEATURES

  • Seat is eliminated to facilitate exercise in the standing position
  • Multiple arm curling motions pronated, supinated and hammer curls
  • Adjustable lumbar pads provides stabilization for abdominal movements
  • Abdominal crunch straps can be used for overhead triceps extension
  • Unilateral or bilateral use

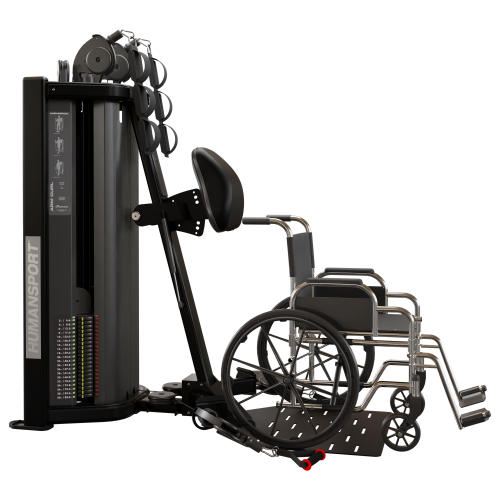

Wheelchair Accessibility:

  • 2:1 cable ratio for low starting resistance
  • Flat anti-skid plate that can be used to roll in a wheelchair
  • Adjustable stabilizer pad
  • Seat is eliminated allowing for wheelchair access
  • Accessory handles are optimally placed for easy access while in the seated position
  • Weight stack utilizes LockNLoad switch technology for quick and easy weight selection even while seated

ARM CRUNCH HSAC3

WIDTH39 IN (99 CM)
LENGTH43 IN (109 CM)
HEIGHT68 IN (172 CM)
STACK WEIGHT2X 88 LBS (2X 40 KG)
OVERALL WEIGHT655 LBS (298 KG)
SHIPPING WEIGHT767 LBS (348 KG)

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONYes, seat is eliminated to facilitate exercise in the standing position and provide multiple arm curling motions pronated, supinated and hammer curls. Adjustable lumbar pads provides stabilization for abdominal movements
ASSISTED ADJUSTMENTSYes, gas assist shock
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes
UNILATERAL OR BILATERAL MOVEMENTYes, Unilateral or bilateral use user defined
CONVERGING OR DIVERGING MOVEMENTSYes, user defined
PULLEY RATIO2:1 ratio

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHTStack Weight Capacity: 2x 88 lbs (2x 40 kg)
INCREMENTAL WEIGHT SYSTEMNo
WEIGHT STACK TOWER HEIGHT65 in (165 cm)
PLATE LOADEDN/A
WEIGHT STORAGE SOLUTIONN/A
LNL TECHNOLOGYYes, standard
ADD-ON RESISTANCE AVAILABLENo
WEIGHT STACK SHROUD SPECIFICATIONSInside and outside steel shrouds.

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver with wood trim, Black with carbon fiber trim
STANDARD UPHOLSTERY COLOR OPTIONSBlack
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEYes with additional fees and extended lead times
CABLE VS. BELT DRIVEN TRANSMISSION3mm cable driven
BOLT DOWN LOCATIONS DEFINEDYes
INTEGRATED LEVELING SYSTEMNo, rubber feet for floor protection
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga

USER SPECIFIC INFORMATION

STATIC PLACARDSStart finish diagram
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLEYes
ANIMATED LENTICULARNo
SAFETY CATCH & STOPSNo
WATER BOTTLE HOLDERNo
PHONE HOLDERNo
GRIP SPECIFICATIONSMultiple accessory handle configurations with multiple D-rings to support varying levels of pre-stretch and modalities. Abdominal crunch straps can be used for overhead triceps extension
FOOT PLATFORMSteel foot platform with black traction paint
CONTOURED PADSYes
RESTRAINT SYSTEM
No but wheelchair accessible
