DETAILS

HumanSport is so simple, intuitive and natural that it feels as if it were custom-built for each and every user. Seven cable based machines with dual weight stacks provide a complete range of workouts for total body training. When paired with the provided programming designed by our Master Instructors, HumanSport makes a powerful addition to any facility.

 W: 75 in (191 cm) – Arms Extended Left and Right 125 in (317 cm)
L: 43 in (108 cm)
H: 72 in (182 cm) –
 Arms Extended Vertically Up 92 in (234 cm)
STACK WEIGHT: 2x 80 lbs (2x 36 kg)
OVERALL WEIGHT: 1,100 lbs (499 kg)
SHIPPING WEIGHT: 1150 LB (522 kg)

*Frames colors 13, 25, 26 and 60 and carbon fiber trim are available at no cost but longer lead times apply, varies by region.

FEATURES

  • Dual weight stacks for personalized or group training, as a standard configuration
  • User Feels Stack Weight Capacity: 2x 80 LB (2x 36 KG) at each handle through two, independent and enclosed weight stacks.
  • Cable drive system, user defined path of motion
  • Nine horizontal position options and 12 vertical position adjustment options
  • 3:1 ratio with 9.5 FT (289.5 CM) training space and 113 IN (287 CM) cable travel
  • Supporting both low and slow resistance and explosive movements
  • Integrated ballet bar to assist with stretching and stability
  • Standard accessories included: pair of hand grips, ankle strap, and padded bar
  • 12 pre-defined exercises with static placards, many more available
  • Easy access to guild rods from the front or rear shrouds
  • Flat back tower to be positioned against a wall, pillar, matching machines, or others in your functional training area(s)
  • Simple cable replacement procedures
  • Standard roller bearings replace plastic bushings for smoother rotation
  • Fits through a standard door frame for ease of install and transport
  • Open top design to visually inspect cables without having to remove shrouds
  • 3 floor bolt locations
  • Stainless steel wear plates

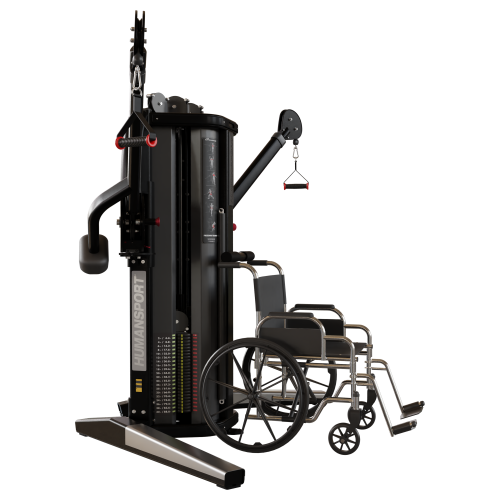

Wheelchair Accessibility:

  • 3:1 cable ratio for low starting resistance
  • Weight stack utilizes LockNLoad switch technology for quick and easy weight selection even while seated
  • Easily adjustable, counter balanced pivot handles, even while in the seated position
  • Open design allowing for wheelchair access

TECHNOLOGY

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

FREEDOM TRAINER DUAL STACK HSFT3

WIDTH75 IN (191 CM) - Arms Extended Left and Right 125 IN (317 CM)
LENGTH43 IN (108 CM)
HEIGHT72 IN (182 CM) - Arms Extended Vertically Up 92 IN (234 CM)
STACK WEIGHT2X 80 LB (2X 36 KG)
OVERALL WEIGHT1,100 LB (499 KG)
SHIPPING WEIGHT1150 LB (522 KG)

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONYes, cable-based training utilizing multiple planes of motion. Nine horizontal position options and 12 vertical position adjustment options
ASSISTED ADJUSTMENTSYes, counter balanced on vertical adjustment arm ends
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes, including visual indicators when pull pin is disengaged
UNILATERAL OR BILATERAL MOVEMENTYes, independent arms use for user defined path of motion by incorporating independent weight stacks and swivel pulleys
CONVERGING OR DIVERGING MOVEMENTSYes, user defined
PULLEY RATIO3:1 ratio with 9.5 ft (289.5 cm) training space and 113 in (287 cm) cable travel

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHTUser Feels Stack Weight Capacity: 2x 80 lb (2x 36 kg) at each handle through two, independent and enclosed weight stacks. Actual weight stack, 2x 240 lb (109 kg)
INCREMENTAL WEIGHT SYSTEMNo
WEIGHT STACK TOWER HEIGHT68.5 in (174 cm)
PLATE LOADEDN/A
WEIGHT STORAGE SOLUTIONNo but it does include accessory rack for multiple pulley attachments: – Grip Handles (2) – Ankle strap – Long ba
LNL TECHNOLOGYYes, standard
ADD-ON RESISTANCE AVAILABLENo
WEIGHT STACK SHROUD SPECIFICATIONSInside and outside steel shrouds.

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver with wood trim, Silver with carbon fiber trim, Black with carbon fiber trim, Black with wood trim
STANDARD UPHOLSTERY COLOR OPTIONSN/A
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEN/A
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEYes with additional fees and extended lead times
CABLE VS. BELT DRIVEN TRANSMISSION4mm cable driven
BOLT DOWN LOCATIONS DEFINEDYes, 3 defined bolt down locations located on weight stack tower
INTEGRATED LEVELING SYSTEMNo, rubber feet for floor protection
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5 mm / 11 ga

USER SPECIFIC INFORMATION

STATIC PLACARDS12 pre-defined exercises with static placards with start and finish diagrams
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLEYes
ANIMATED LENTICULARNo
SAFETY CATCH & STOPSN/A
WATER BOTTLE HOLDERNo
PHONE HOLDERNo
GRIP SPECIFICATIONSOversized, rubber grips on stabilization handles which provide ideal positioning for hip, knee and ankle exercises
FOOT PLATFORMN/A
CONTOURED PADSN/A
RESTRAINT SYSTEM
N/A
Pre-loader
