Proven. Smart.
Effective.

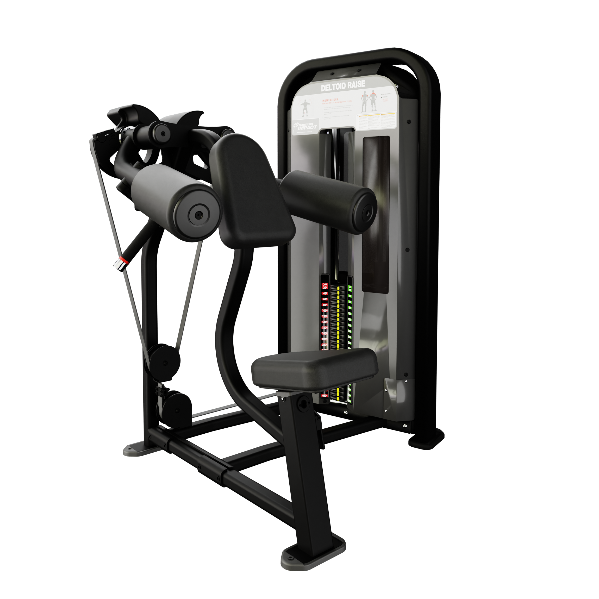

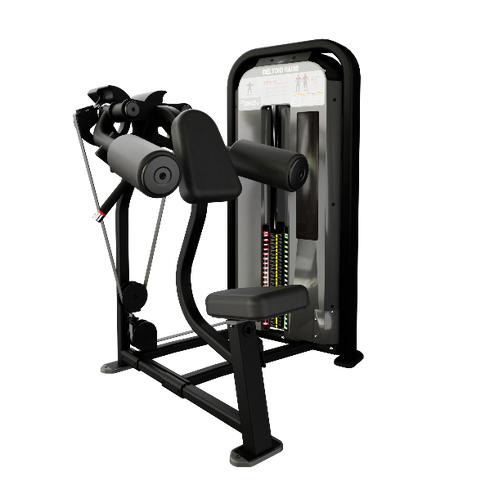

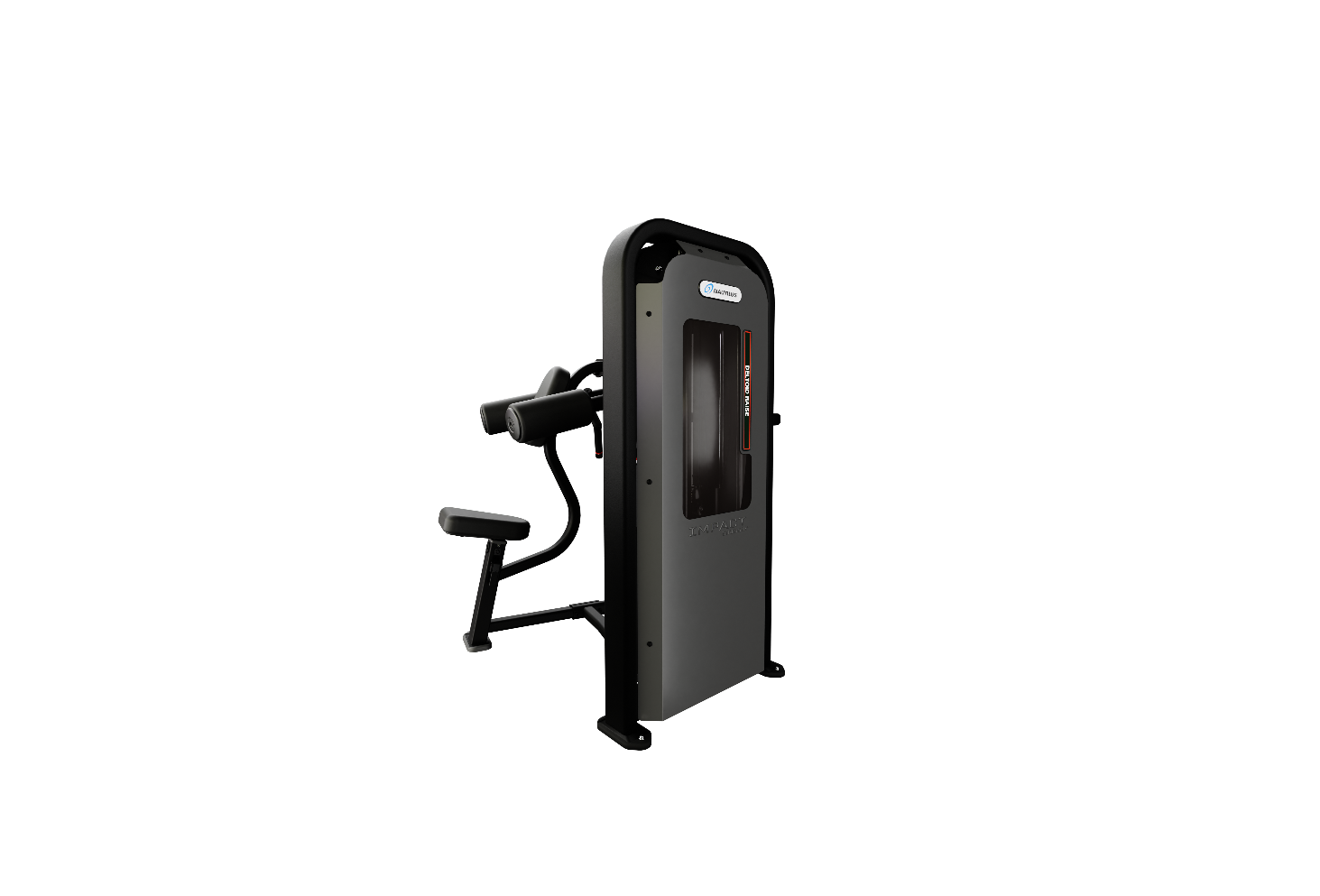

The Impact® Strength line brings many subtle innovations to the power of your next weight training workout. It is the evolution of the proven biomechanics and user features that have made the strength line a solid, competitive product. This line retains all the unique, proven, individual design features that customers have stated are ideal such as pre-stretch, start assist, range of motion selection and graduated & standard heavy weight stacks. Impact Strength incorporates new aesthetics and biomechanics features that have established its position as a competitive and diverse strength product line.
W: 46 IN (117 CM)
L: 51 IN (130 CM)
H: 60 IN (152 CM)
STACK WEIGHT: 130 LBS (65 KG)
OVERALL WEIGHT: 479 LB (217 KG)
SHIPPING WEIGHT: 560 LB (254 KG)
*Frames colors 19, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.
| W | 46 IN (117 CM) |
|---|---|
| L | 51 IN (130 CM) |
| H | 60 IN (152 CM) |
| STACK WEIGHT | 130 LBS (65 KG) |
| OVERALL WEIGHT | 479 LB (217 KG) |
| SHIPPING WEIGHT | 560 LB (254 KG) |
| USER DEFINED RANGE OF MOTION | Fixed path |
|---|---|
| ASSISTED ADJUSTMENTS | SKU Dependent, Gravity assisted positioning, adjustable seat with “easy up” ratcheting adjustment |
| COLOR CODED PIVOT POINTS AND ADJUSTMENTS | Yes on all units |
| UNILATERAL OR BILATERAL MOVEMENT | Yes, unit dependent |
| CONVERGING OR DIVERGING MOVEMENTS | Yes, unit dependent |
| PULLEY RATIO | 1:1 |
| TOTAL STACK WEIGHT | Machine dependent |
|---|---|
| INCREMENTAL WEIGHT SYSTEM | 5 lb incremental weight system for optimal progression |
| WEIGHT STACK TOWER HEIGHT | Machine dependent |
| PLATE LOADED | N/A |
| WEIGHT STORAGE SOLUTION | N/A |
| LNL TECHNOLOGY | Yes |
| ADD-ON RESISTANCE AVAILABLE | Yes, 5 lb incremental |
| WEIGHT STACK SHROUD SPECIFICATIONS | Inside and outside steel shrouds, clear windows on both sides |
Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.
This 23 piece line covers all of the essentials needed make up the foundation of any facility. Suited for all fitness levels, users can isolate and focus on each body part, making their workout customizable and efficient. Proven biomechanics and a rock solid construction ensure the durability that club owners expect.
| STANDARD FRAME COLOR OPTIONS | Silver, White, Black |
|---|---|
| STANDARD UPHOLSTERY COLOR OPTIONS | Black |
| FRAME FINISH | Electrostatic Powder coating |
| CUSTOMIZABLE PAINT OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE BRANDING OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CABLE VS. BELT DRIVEN TRANSMISSION | SKU dependent |
| BOLT DOWN LOCATIONS DEFINED | Yes |
| INTEGRATED LEVELING SYSTEM | No, rubber feet for floor protection |
| HARDWARE TYPE | Hex / Button Head |
| TUBBING STYLE & THICKNESS | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
| HEIGHT | Changes per unit yet mostly 60" |
| STATIC PLACARDS | Yes, simple and intuitive placard |
|---|---|
| MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE | Yes |
| ANIMATED LENTICULAR | No |
| SAFETY CATCH & STOPS | Yes, SKU dependent |
| WATER BOTTLE HOLDER | No |
| PHONE HOLDER | No |
| GRIP SPECIFICATIONS | Rubber, large grips for pushing, smaller grips for pulling. |
| FOOT PLATFORM | Machine dependent |
| CONTOURED PADS | Yes, contoured back pads on select machines |
| BELT STABILIZATION SYSTEM | No |
