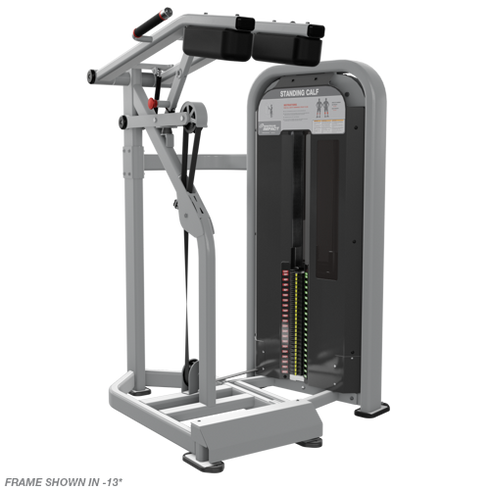

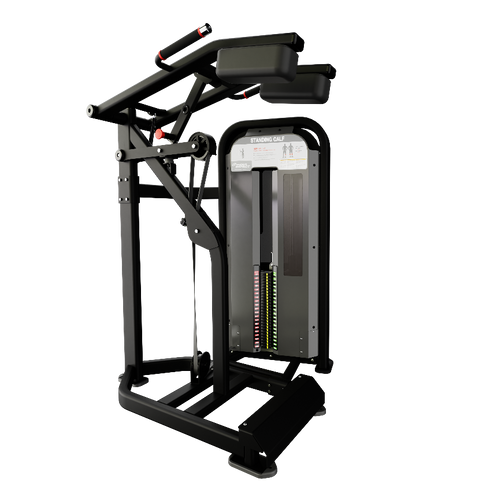

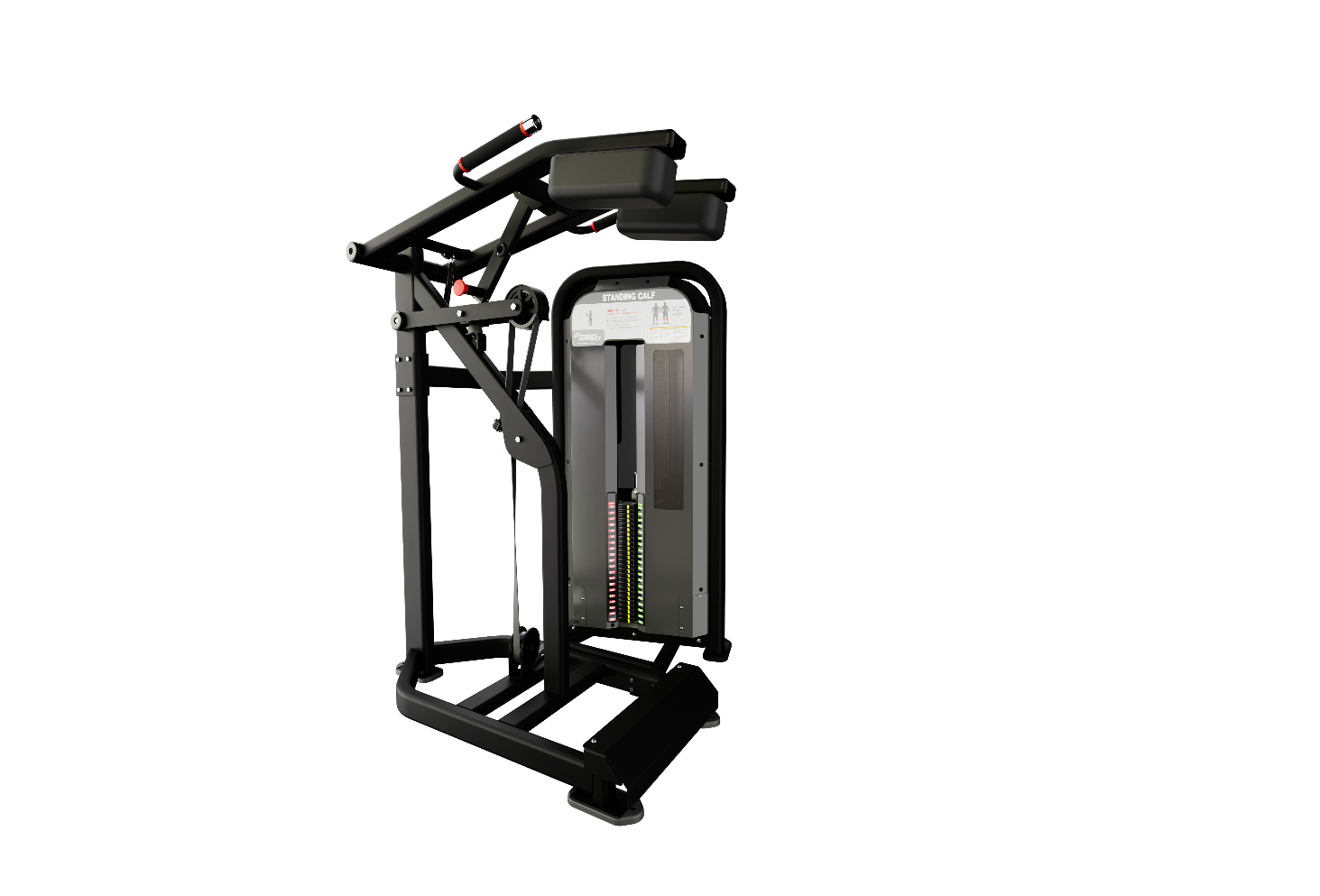

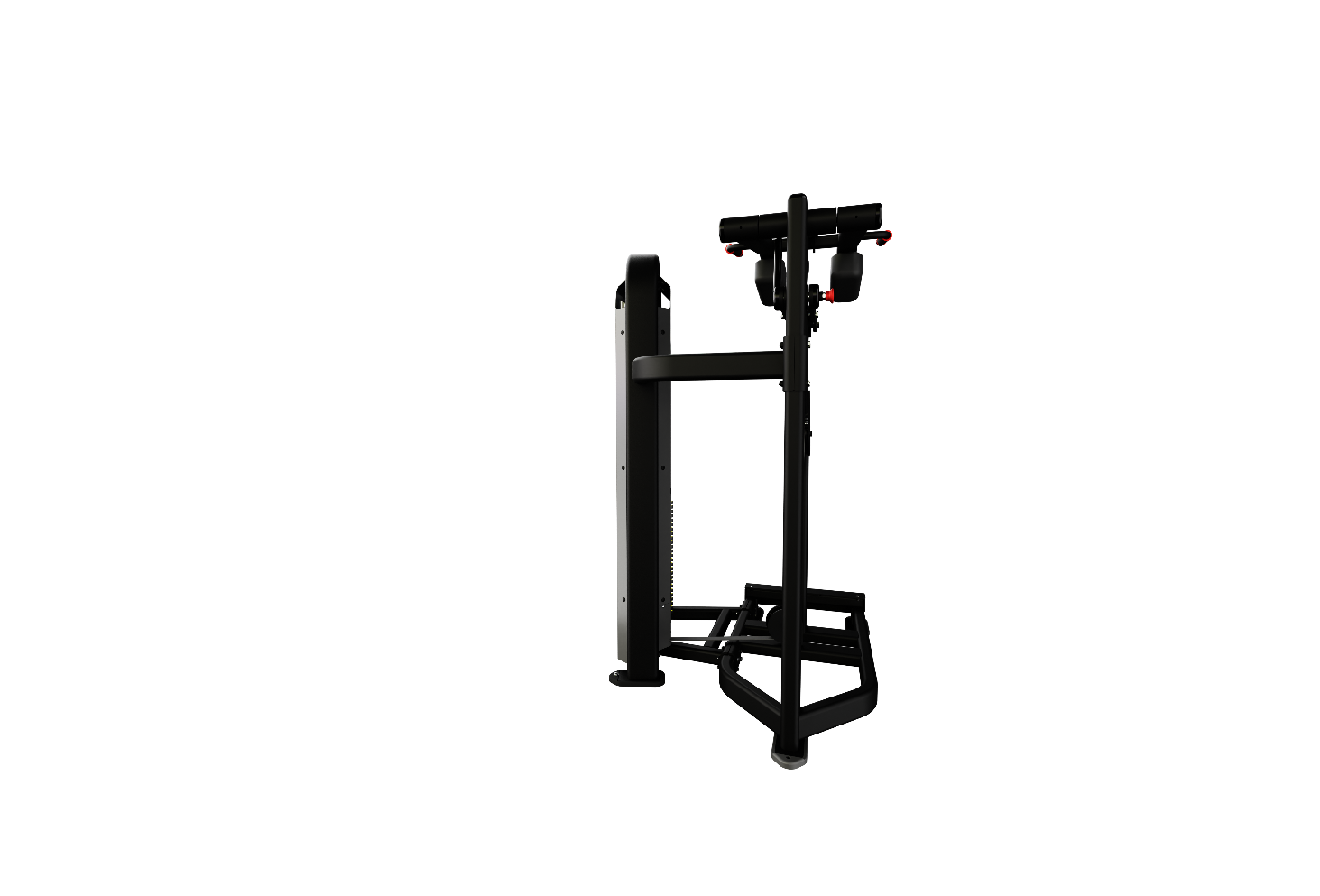

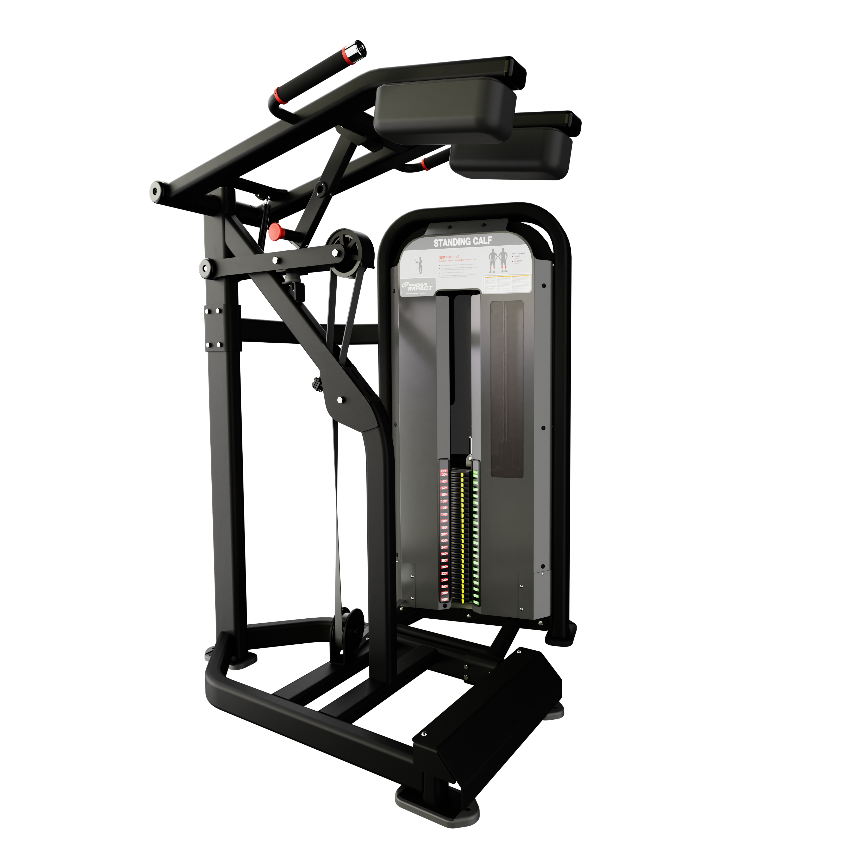

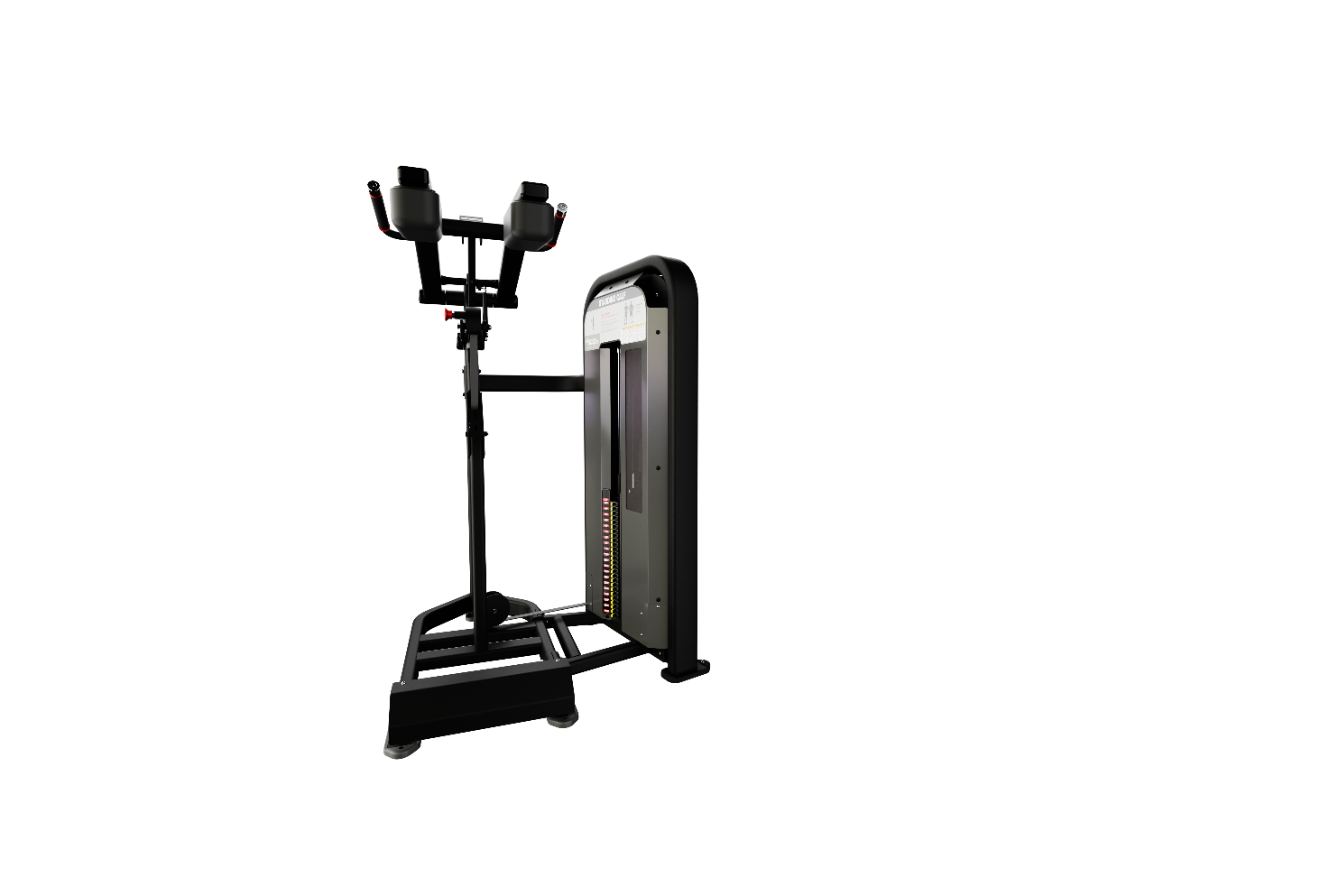

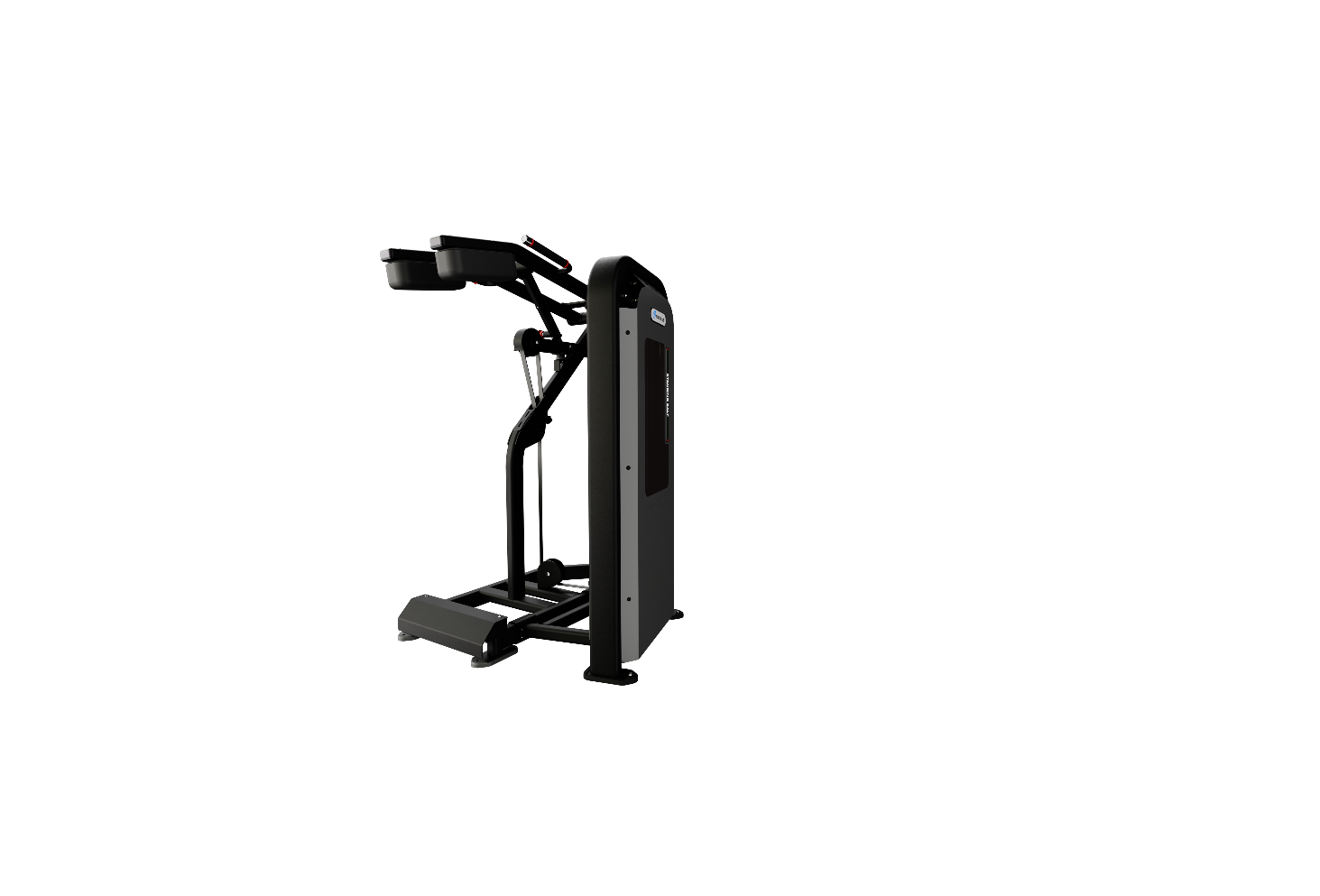

Nautilus Impact Standing Calf

Nautilus Impact Standing Calf
Nautilus Impact Standing Calf
Nautilus Impact Standing Calf
Nautilus Impact Standing Calf

Nautilus Impact Standing Calf

  • Sale
  • Regular price $4,999.00
  • & FREE Shipping

Fast Free Shipping - Buy Now, Pay Later


DETAILS

Proven. Smart.

Effective. The Impact® Strength line brings many subtle innovations to the power of your next weight training workout. It is the evolution of the proven biomechanics and user features that have made the strength line a solid, competitive product. This line retains all the unique, proven, individual design features that customers have stated are ideal such as pre-stretch, start assist, range of motion selection and graduated & standard heavy weight stacks. Impact Strength incorporates new aesthetics and biomechanics features that have established its position as a competitive and diverse strength product line.

 W: 49 IN (124 CM)
L: 41 IN (104 CM)
H: 62 IN (151 CM)
STACK WEIGHT: 260 LB (130 KG)
 OVERALL WEIGHT: 635 LB (288 KG)
SHIPPING WEIGHT: 706 LB (320 KG)

*Frames colors 19, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.

FEATURES

  • User-friendly weight stack selection
  • 5 lb incremental weight system for optimal progression
  • Pull-pin adjustment
  • Gravity assisted positioning
  • Featuring the patented Lock N Load® weight selection system

STANDING CALF 9NA-S1309

W49 IN (124 CM)
L41 IN (104 CM)
H62 IN (151 CM)
STACK WEIGHT260 LB (130 KG)
OVERALL WEIGHT635 LB (288 KG)
SHIPPING WEIGHT706 LB (320 KG)

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONFixed path
ASSISTED ADJUSTMENTSSKU Dependent, Gravity assisted positioning, adjustable seat with “easy up” ratcheting adjustment
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes on all units
UNILATERAL OR BILATERAL MOVEMENTYes, unit dependent
CONVERGING OR DIVERGING MOVEMENTSYes, unit dependent
PULLEY RATIO1:1

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHTMachine dependent
INCREMENTAL WEIGHT SYSTEM5 lb incremental weight system for optimal progression
WEIGHT STACK TOWER HEIGHTMachine dependent
PLATE LOADEDN/A
WEIGHT STORAGE SOLUTIONN/A
LNL TECHNOLOGYYes
ADD-ON RESISTANCE AVAILABLEYes, 5 lb incremental
WEIGHT STACK SHROUD SPECIFICATIONSInside and outside steel shrouds, clear windows on both sides

LOCK N LOAD WEIGHT SELECTION

Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.

THE ESSENTIAL STRENGTH LINE

This 23 piece line covers all of the essentials needed make up the foundation of any facility. Suited for all fitness levels, users can isolate and focus on each body part, making their workout customizable and efficient. Proven biomechanics and a rock solid construction ensure the durability that club owners expect.

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver, White, Black
STANDARD UPHOLSTERY COLOR OPTIONSBlack
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEYes with additional fees and extended lead times
CABLE VS. BELT DRIVEN TRANSMISSIONSKU dependent
BOLT DOWN LOCATIONS DEFINEDYes
INTEGRATED LEVELING SYSTEMNo, rubber feet for floor protection
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga
HEIGHTChanges per unit yet mostly 60"

USER SPECIFIC INFORMATION

STATIC PLACARDSYes, simple and intuitive placard
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLEYes
ANIMATED LENTICULARNo
SAFETY CATCH & STOPSYes, SKU dependent
WATER BOTTLE HOLDERNo
PHONE HOLDERNo
GRIP SPECIFICATIONSRubber, large grips for pushing, smaller grips for pulling.
FOOT PLATFORMMachine dependent
CONTOURED PADSYes, contoured back pads on select machines
BELT STABILIZATION SYSTEMNo
