DETAILS

A STRONGER FIRST IMPRESSION

The Nautilus Inspiration Strength® line delivers a series of must have updates to an outstanding strength circuit. Redesigned with beautiful, modern aesthetics and uniform towers, Nautilus Inspiration makes a powerful first impression. Each machine captures the essence of natural human movement. Members will appreciate the many easy to use features like the wrap around assisted seat adjustment, Lenticular image placards, pre-stretch and range of motion controls designed to enhance each user’s experience.

 Length: 46 in (117 cm)
Width: 62 in (157 cm)
Height: 91 in (231 cm)
Stack Weight: 2 x 440 lbs (2 x 181 kg)
Pulley Ratio: 4:1
Weight at Handle: 100 lbs
 Product Weight: 1,439 lbs (654 kg)

*Frames colors 13, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.

FEATURES

  • Unlimited high-low cable positioning combinations
  • All steel adjustable pulleys with single hand adjustment design
  • Lock N Load® weight selection system
  • Integrated pull up bar with multi-grip hand positioning
  • 4 to 1 lifting ratio for smooth low inertia operation
  • Extended cable travel for a variety of exercises
  • Fixed footprint for optimal floor planning and placement
  • Moving image lenticular instruction placard
  • 5 lb user increments
  • Intuitive exercise placards featuring 12 targeted movements

TECHNOLOGY

“Lock N Load®

 Now weight selection is as easy as flipping a switch. The intuitive Lock N Load® design is easily recognizable. If you’ve ever flicked a light switch on and off, you’ll immediately understand how it works. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance and customer service headaches since there are no pins to lose or replace. “

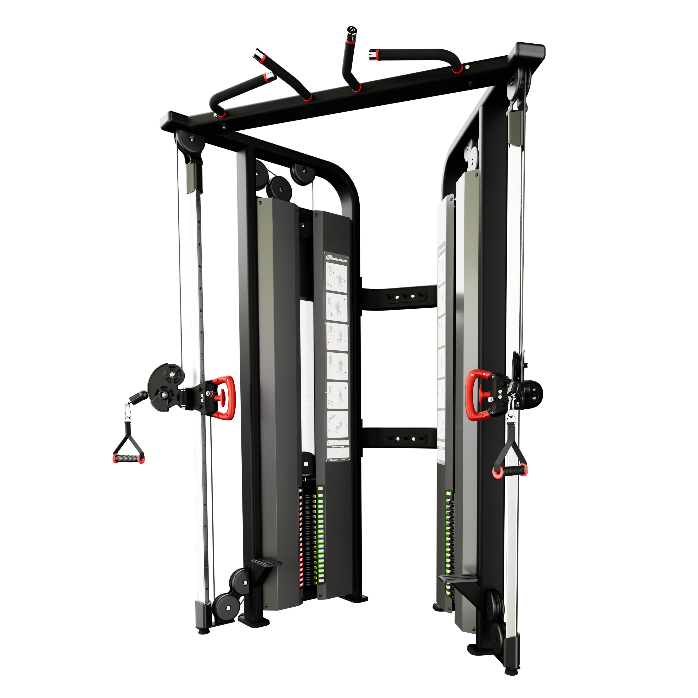

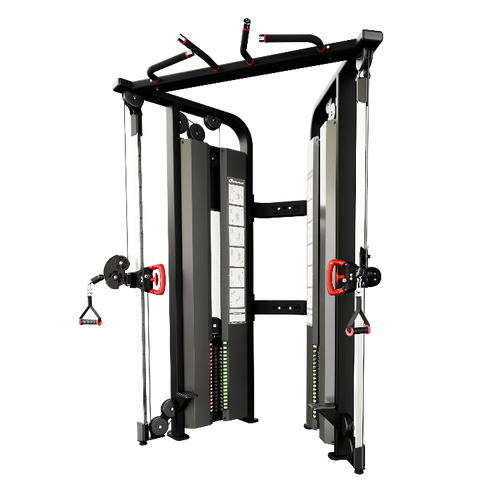

DUAL ADJUSTABLE PULLEY NP-D9302

W62 IN (157 CM)
L46 IN (117 CM)
H91 IN (231 CM)
STACK WEIGHT2 X 400 LB (2 X 181 KG) 2 X 100 LB (AT HANDLE)
OVERALL WEIGHT1,308 LB (593 KG)
SHIPPING WEIGHT1,394 LB (632 KG)

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONUnlimited high-low cable positioning combinations with extended cable travel for a variety of exercises. Plus standard, integrated pull up bar with multi-grip hand positioning.
ASSISTED ADJUSTMENTSAll steel adjustable pulleys with gravity assisted, single hand adjustment design.
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes on all units
UNILATERAL OR BILATERAL MOVEMENTDual, independent weight stacks allows for both unilateral and bilateral movements.
CONVERGING OR DIVERGING MOVEMENTSDual, independent weight stacks allows for both converging and diverging movements.
PULLEY RATIO4:1 lifting ratio for smooth low inertia operation.

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHT2 x 440 lbs (2 x 181 kg). With the 4:1 ratio, the weight at each handle is 100 lbs (45 kg)
INCREMENTAL WEIGHT SYSTEM10 lb increment, 5 lb add on
WEIGHT STACK TOWER HEIGHTDual, independent weight stacks standing inside the frame 91 in (231 cm)
PLATE LOADEDN/A

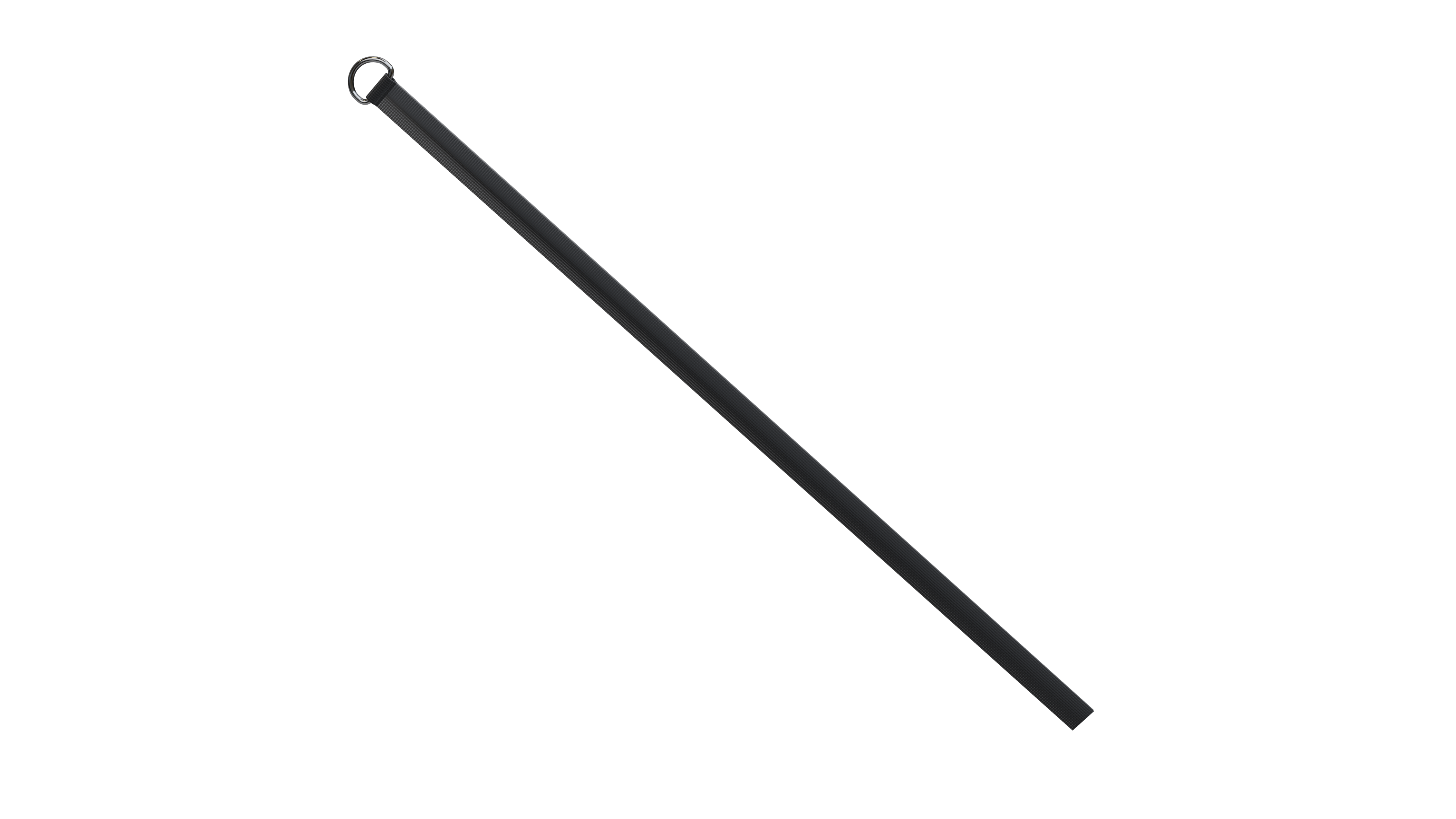

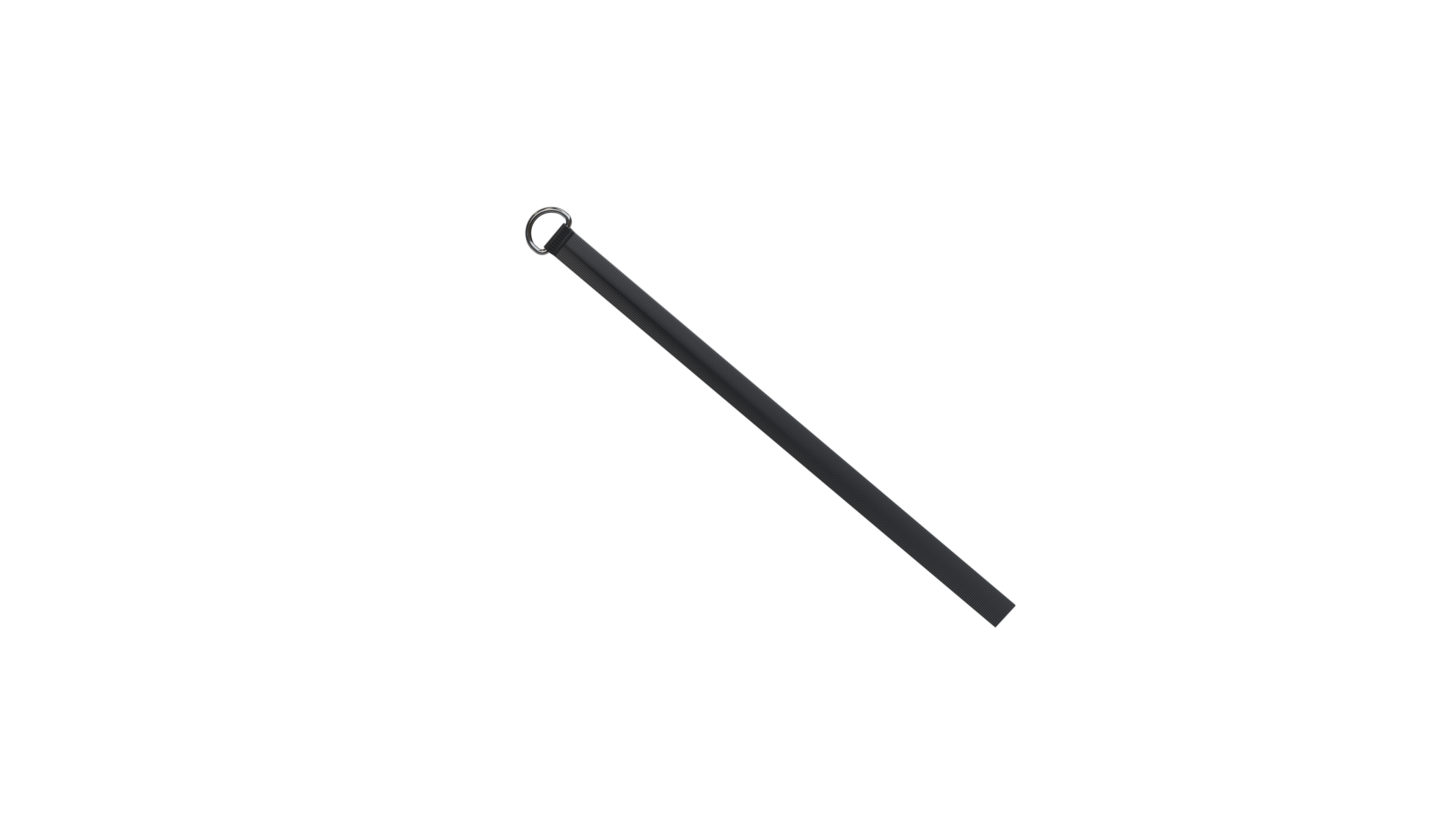

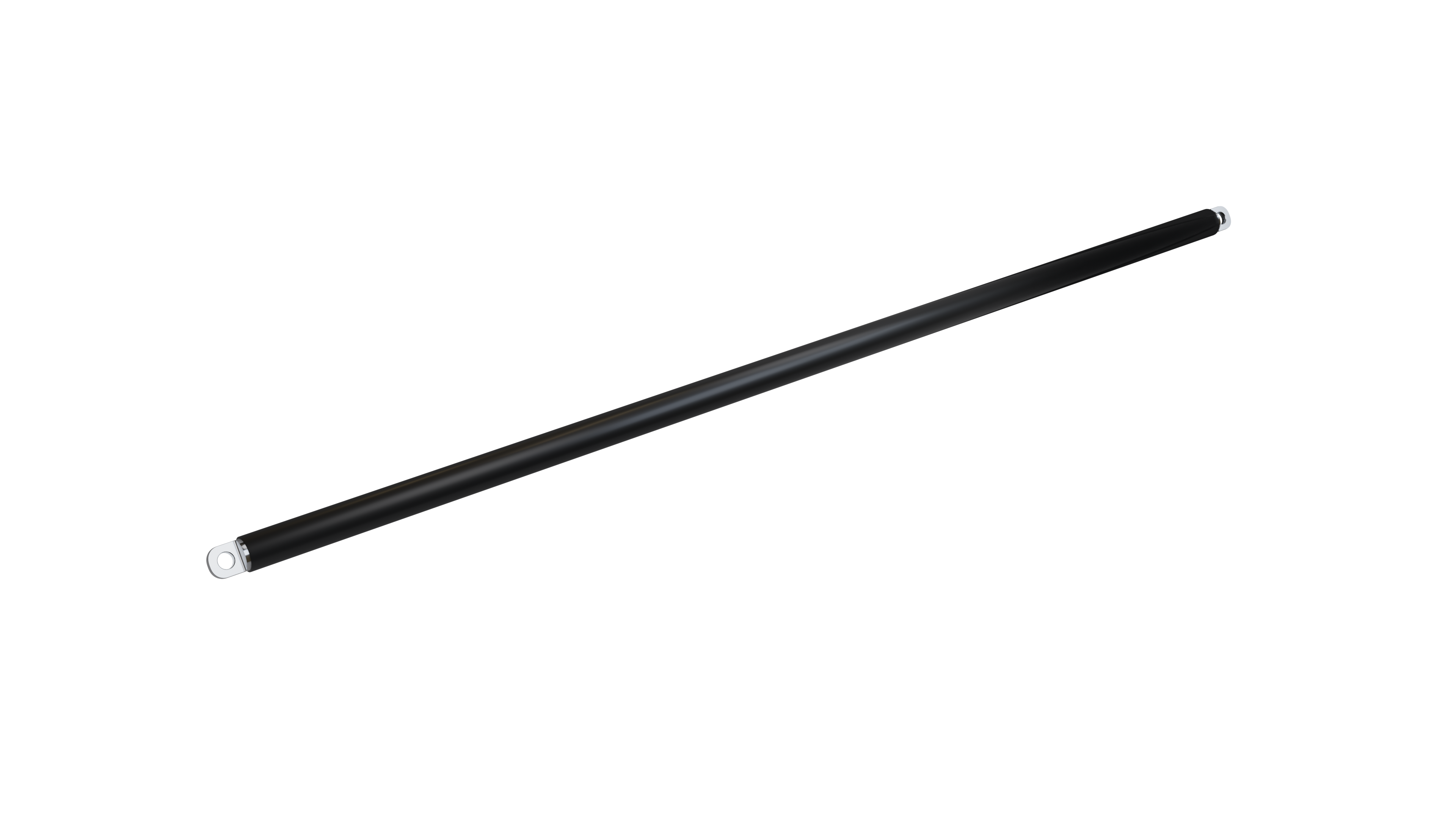

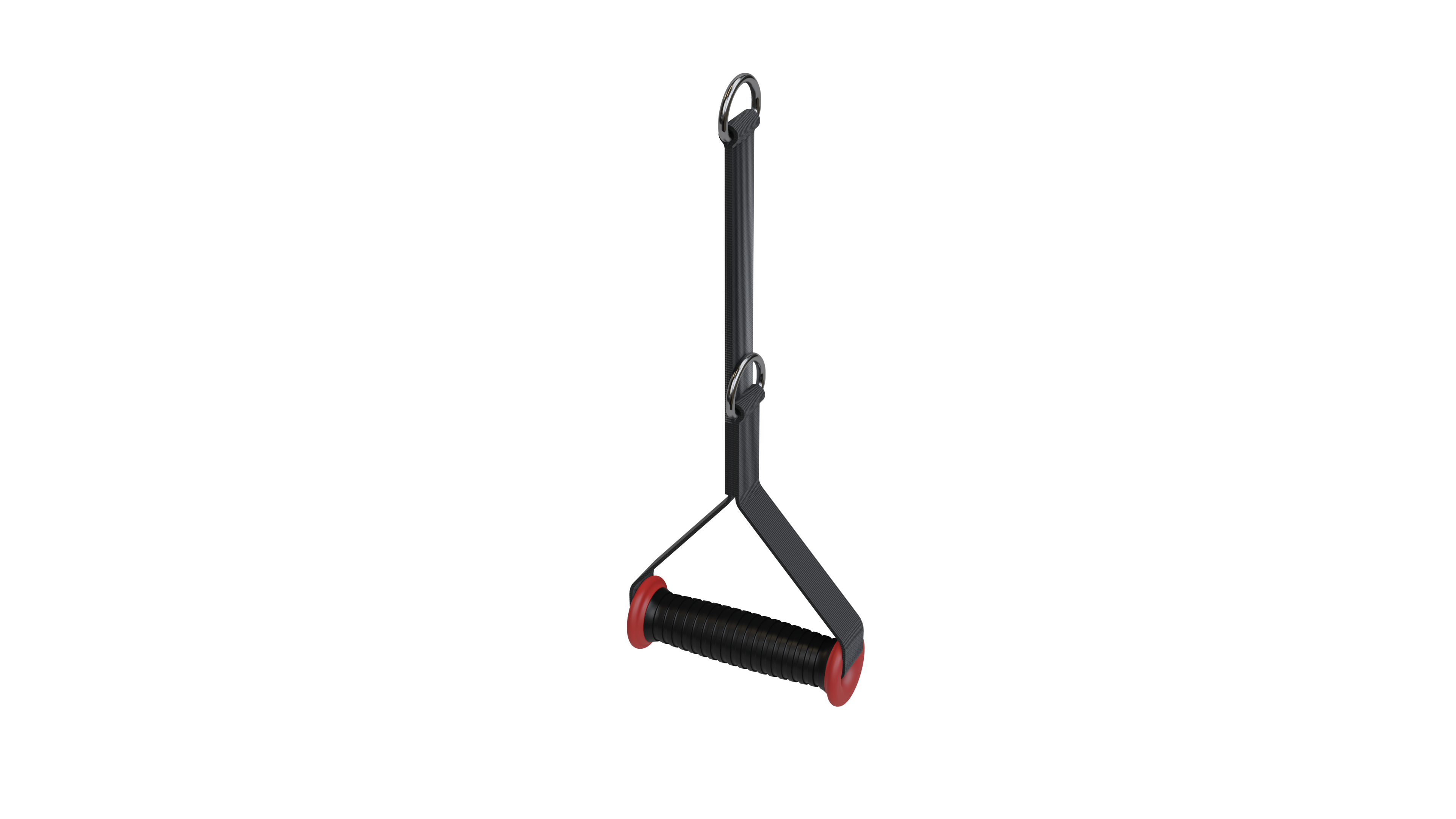

WEIGHT STORAGE SOLUTIONIntegrated accessory storage pegs. Comes standard with (2) 6” grip handles, (1) stirrup handle, (1) ankle strap, (1) body strap, (1) long bar
LNL TECHNOLOGYYes
ADD-ON RESISTANCE AVAILABLEYes, 5 lb incremental add on plate
WEIGHT STACK SHROUD SPECIFICATIONSUniform size, standard steel / customized aluminum materials

LOCK N LOAD®WEIGHT SELECTION

Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.

SMART TOWERDESIGN

The beautifully designed Nautilus Inspiration line, with their uniform 64" (163 cm) towers, deliver superior lines of site across your venue and create a visually powerful impression during facility tours. The tower housing is designed to accommodate custom graphics and wraps to personalize the equipment in your facility.

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver, White, Black
STANDARD UPHOLSTERY COLOR OPTIONSBlack
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEYes with additional fees and extended lead times
CABLE VS. BELT DRIVEN TRANSMISSIONCable drive
BOLT DOWN LOCATIONS DEFINEDYes
INTEGRATED LEVELING SYSTEMYes
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga

USER SPECIFIC INFORMATION

STATIC PLACARDSYes, full color static placards on both right/left steel shrouds. Intuitive exercise placards featuring 12 targeted movements
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLEYes
ANIMATED LENTICULARN/A
SAFETY CATCH & STOPSYes, built into adjustment handles.
WATER BOTTLE HOLDERN/A
PHONE HOLDERN/A
GRIP SPECIFICATIONSRubber, large grips for pushing, smaller grips for pulling.
FOOT PLATFORMN/A
CONTOURED PADSN/A
BELT STABILIZATION SYSTEMN/A
Pre-loader
