DETAILS
EASY TO USE. EASY ON SPACE.
When it comes to a complete workout, it’s all business. Whether you’re an experienced athlete or a beginner, everyone wants the ability to get a quick, easy and complete workout. And that’s exactly what Instinct® Strength is all about. Each piece welcomes users of all levels with quick and easy adjustments for efficient workouts. Perfectly suited to be a basic strength line or circuit system, Instinct effectively complements more specialized lines. Users can complete a circuit on their own or with the assistance of an instructor in just 30 minutes. Instinct® Strength offers both single and dual function units to meet the needs of any space or facility. Instinct also offers the revolutionary Lock N Load® patented weight selection system. The versatility of Instinct’s small footprint also lets you get the most from minimal space, while blending seamlessly with our cardio line for a cohesive facility look.
W: 40 IN (102 CM)
L: 45 IN (114 CM)
H: 55 IN (140 CM)
STACK WEIGHT: 120 LB (54 KG)
OVERALL WEIGHT: 369 LB (168 KG)
SHIPPING WEIGHT: 522 LB (237 KG)
*Frames colors 29, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.
**Available as standard in North and South America
FEATURES
- Simple, intuitive placard
- Walk-through entry design
- Adjustable seat with “easy up” ratcheting adjustment
- Adjustable chest/back pad and range of motion control allow for dual exercises: Abdominal Crunch and Back Extension
- Rubber feet for floor protection
- Featuring the patented Lock N Load® weight selection system
- Cable-driven transmission

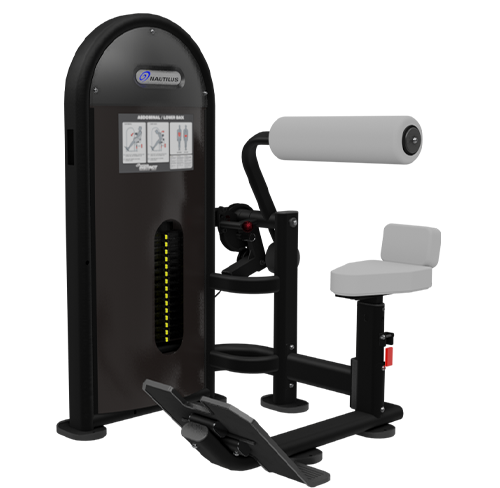

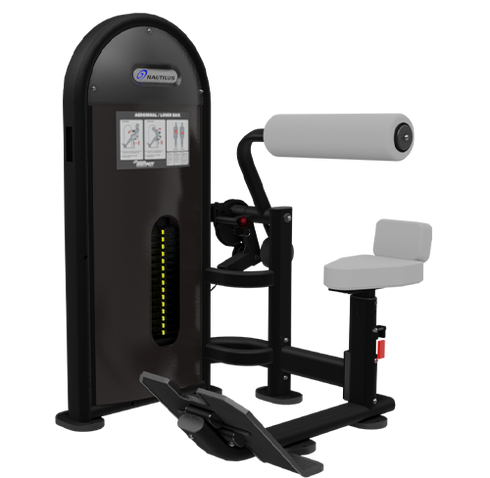

DUAL ABDOMINAL/LOWER BACK 9NL-D6330
| W | 40 IN (102 CM) |
|---|---|
| L | 45 IN (114 CM) |
| H | 55 IN (140 CM) |
| STACK WEIGHT | 120 LB (54 KG) |
| OVERALL WEIGHT | 369 LB (168 KG) |
| SHIPPING WEIGHT | 522 LB (237 KG) |
ADJUSTMENTS & MOVEMENTS
| USER DEFINED RANGE OF MOTION | Fixed path |
|---|---|
| ASSISTED ADJUSTMENTS | Gravity assisted seat bottom |
| COLOR CODED PIVOT POINTS AND ADJUSTMENTS | Yes on all units |
| UNILATERAL OR BILATERAL MOVEMENT | Possible if user uses one handle at a time |
| CONVERGING OR DIVERGING MOVEMENTS | Linear motion |
| PULLEY RATIO | 1:1 |
WEIGHT STACK SPECIFICATIONS
| TOTAL STACK WEIGHT | 120 LB (54 KG) |
|---|---|
| INCREMENTAL WEIGHT SYSTEM | 10, 150 |
| WEIGHT STACK TOWER HEIGHT | 54.5 in (138 cm) |
| PLATE LOADED | N/A |
| WEIGHT STORAGE SOLUTION | N/A |
| LNL TECHNOLOGY | Yes |
| ADD-ON RESISTANCE AVAILABLE | No |
| WEIGHT STACK SHROUD SPECIFICATIONS | Transparent, smoked plexiglass inside and outside shrouds |
LOCK N LOAD®WEIGHT SELECTION
Selecting a weight with the intuitive Lock N Load design is as easy as flicking a switch. Universally color coded switches engage and disengage the weight via an internal pin, providing a safer, more durable and maintenance free operation. Lock N Load prevents unnecessary maintenance headaches since there are no pins to lose or replace.
DUAL USEMACHINES
The versatile dual purpose machines from Nautilus Instinct have a modest footprint and allow you to switch between two different exercises with a simple adjustment. This is ideal for smaller facilities, giving them the ability to fit a full fitness circuit in a much smaller space.
FRAME SPECIFICATIONS & CABLE INFORMATION
| STANDARD FRAME COLOR OPTIONS | Silver, White, Black |
|---|---|
| STANDARD UPHOLSTERY COLOR OPTIONS | Dove Gray, Black |
| FRAME FINISH | Electrostatic Powder coating |
| CUSTOMIZABLE PAINT OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE BRANDING OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CABLE VS. BELT DRIVEN TRANSMISSION | Cable |
| BOLT DOWN LOCATIONS DEFINED | Yes |
| INTEGRATED LEVELING SYSTEM | No, rubber feet for fl oor protection |
| HARDWARE TYPE | Hex / Button Head |
| TUBBING STYLE & THICKNESS | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
USER SPECIFIC INFORMATION
| STATIC PLACARDS | Yes, simple and intuitive placard |
|---|---|
| MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE | Large and graphical, limited text to eliminate translation requirements |
| ANIMATED LENTICULAR | No |
| SAFETY CATCH & STOPS | ROM stops |
| WATER BOTTLE HOLDER | No |
| PHONE HOLDER | No |
| GRIP SPECIFICATIONS | Rubber, large grips for pushing, smaller grips for pulling. |
| FOOT PLATFORM | Oversized, rubber grip foot pad |
| CONTOURED PADS | No, removable wear strap for extended upholstery life |
| RESTRAINT SYSTEM | N/A |
