DETAILS
A ONE-OF-A-KIND PLATE LOADED EXPERIENCE
The Nautilus LeverageTM line offers a one-of-a-kind plate-loaded experience with features that outshine the competition. Leverage features stainless steel knurled grips, assisted seat adjustments and user defined pre-stretch settings. Using multiple levers and cams, Leverage creates a unique lifting profile for each movement that maximizes the mechanics of the human body. With a sleek look and integrated storage, the Leverage strength line will appeal to facility operators and their members. It’s all about the feel and once you’ve worked out on Leverage, pushing and pulling weight plates will never be the same.
W: 51 IN (130 CM)
L: 86 IN (218 CM)
H: 73 IN (185 CM)
STACK WEIGHT: N/A
OVERALL WEIGHT: 443 LB (201 KG)
SHIPPING WEIGHT: 582 LB (264 KG)
*Frames colors 19, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.
FEATURES
- Stainless steel knurled grip
- Max capacity 270 lbs (123 kg) per arm
- Starting resistance 6.6 lbs (7 kg) per arm
- Unilateral, diverging independent arm motion
- Intuitive touch points and user friendly gas assisted seat adjust
- One-of-a-kind lever and cam system for optimum biomechanics
- Low load points for safe and simple use
- Integrated plate storage
- Adjustable chest pad for optimal pre-stretch
- Weight plates sold separately

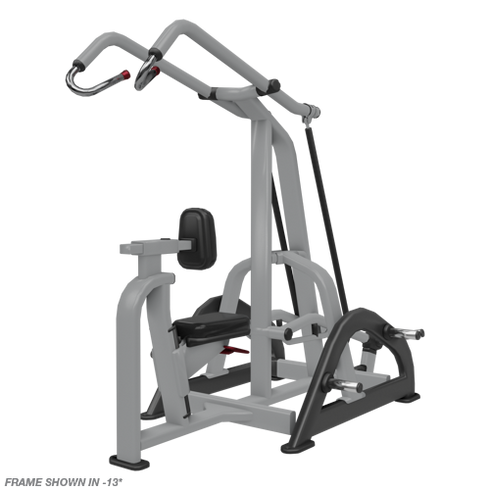

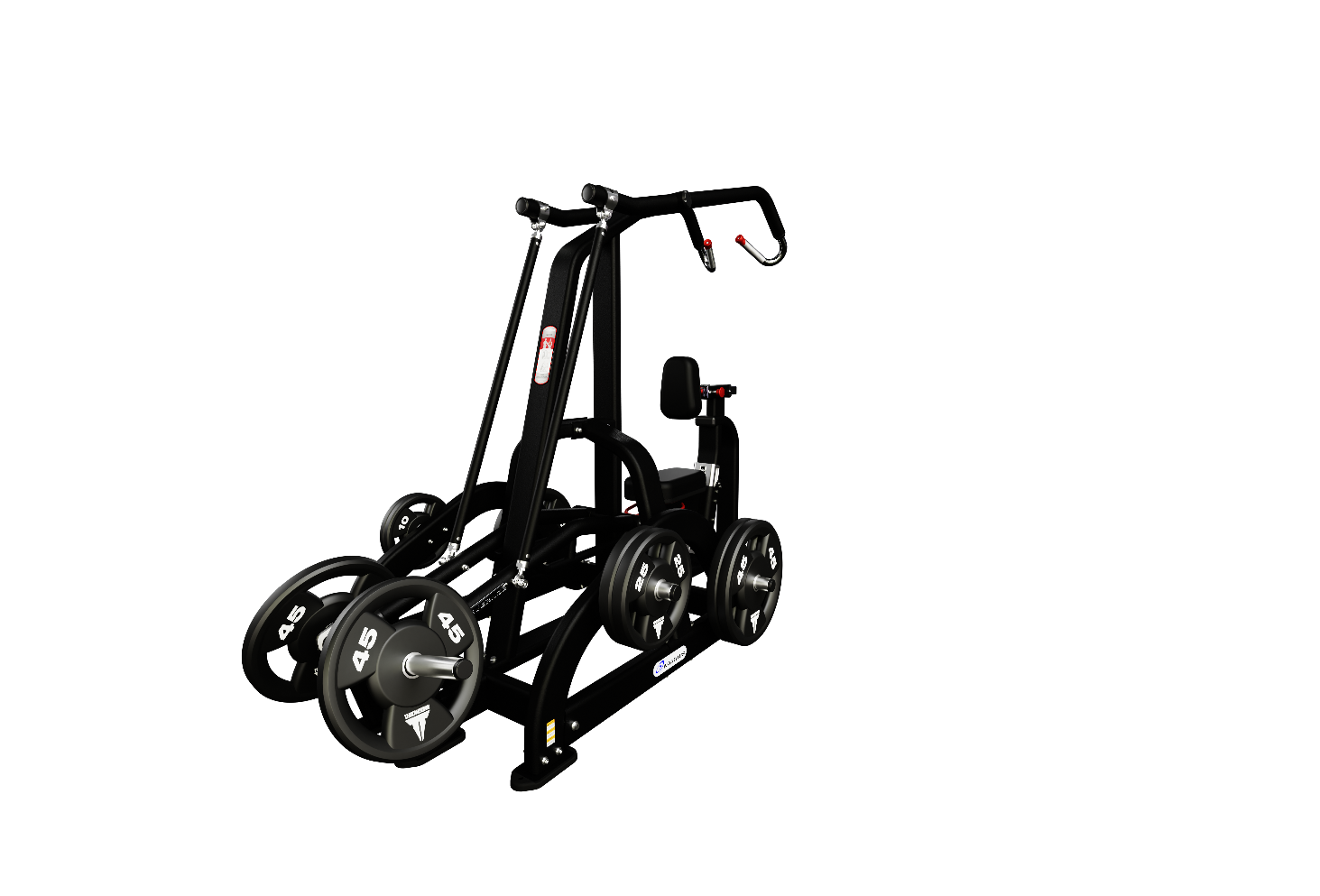

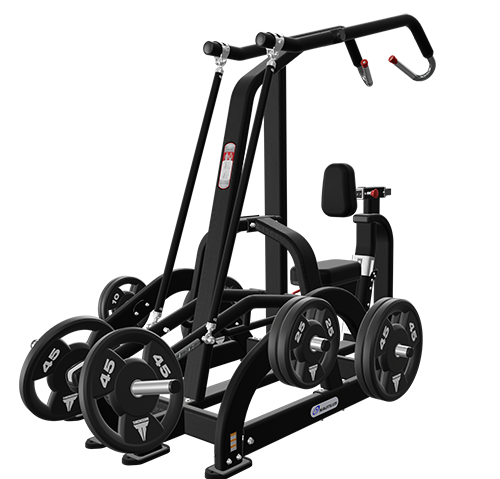

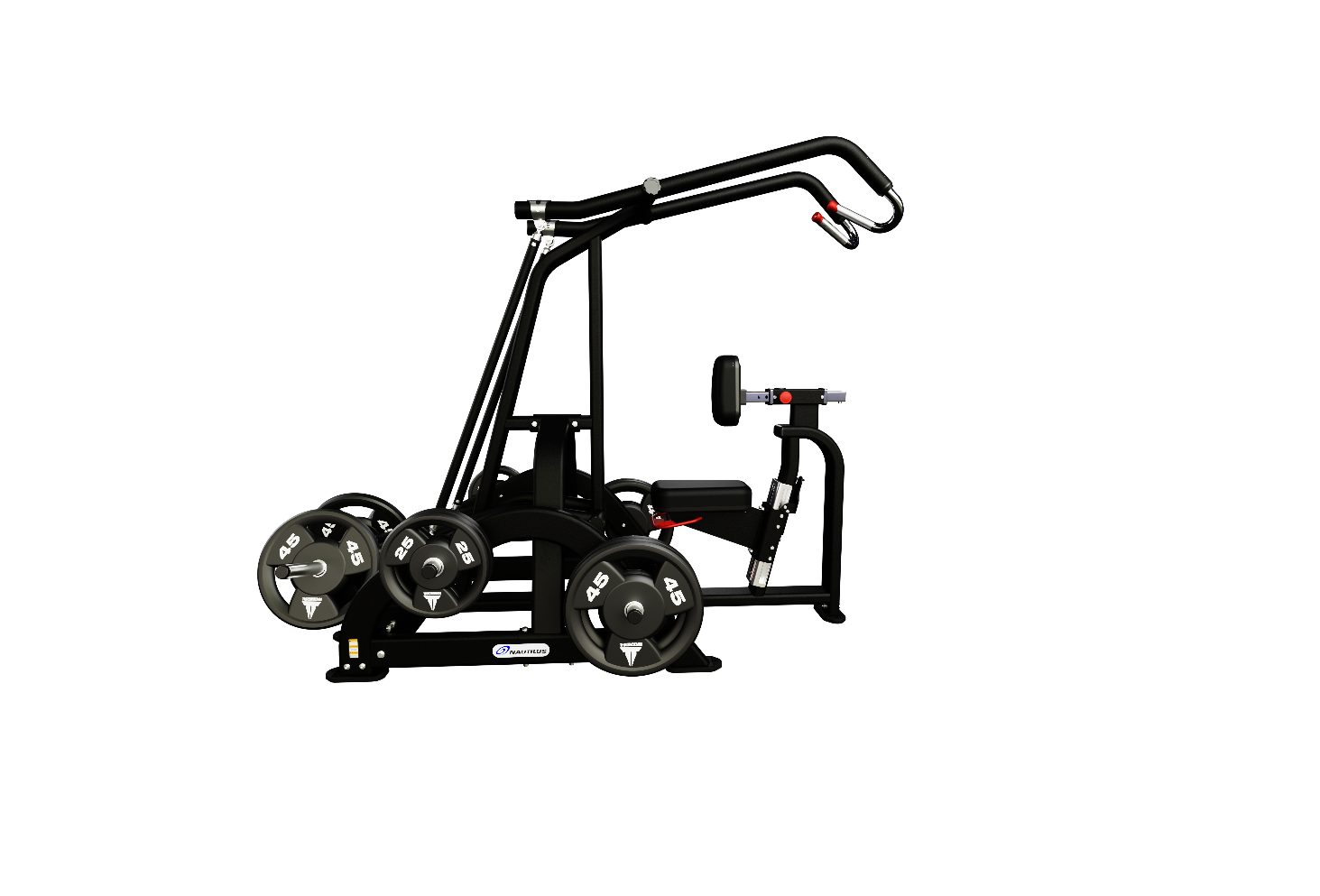

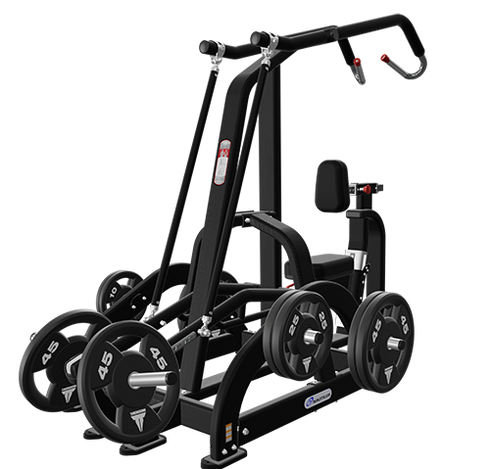

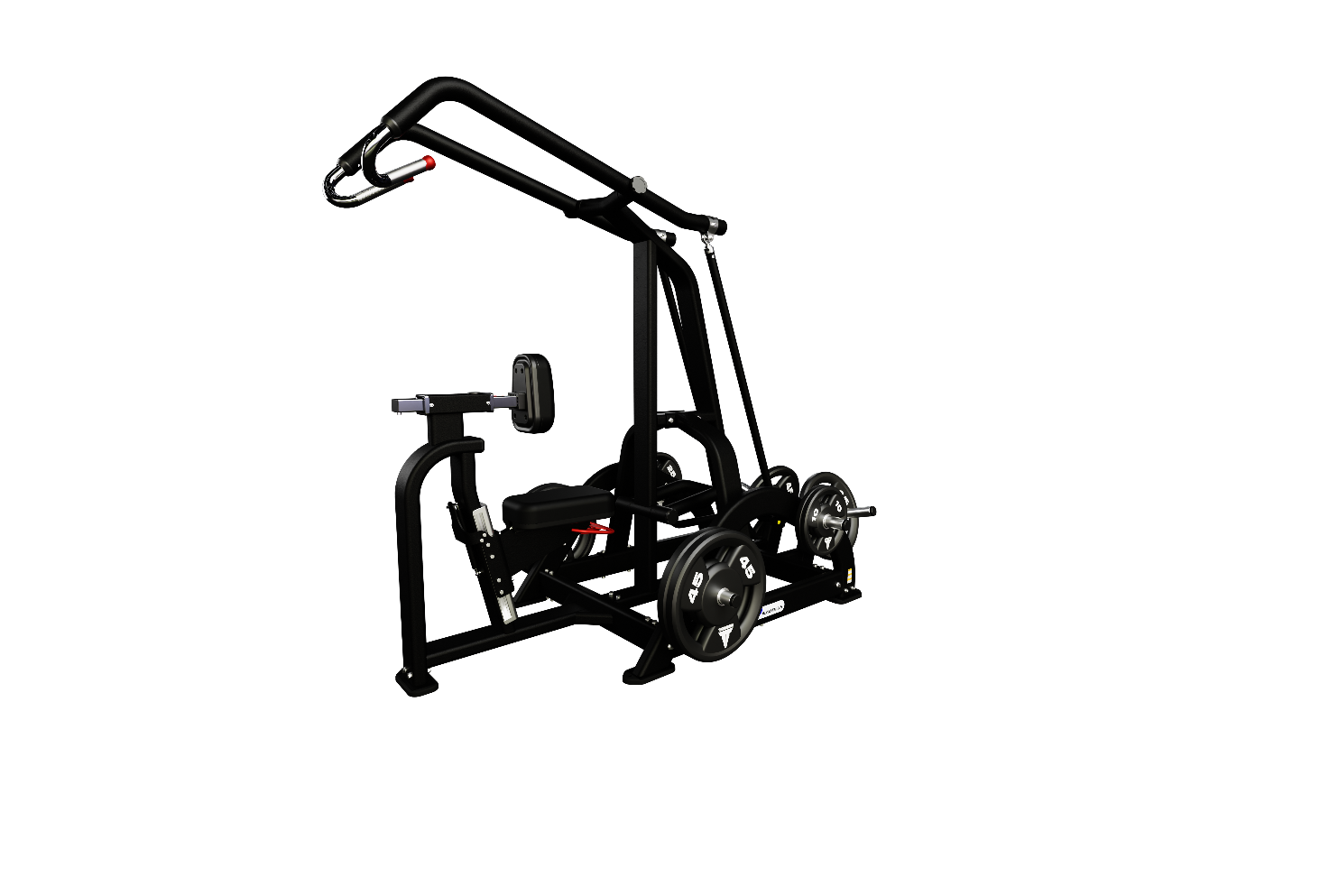

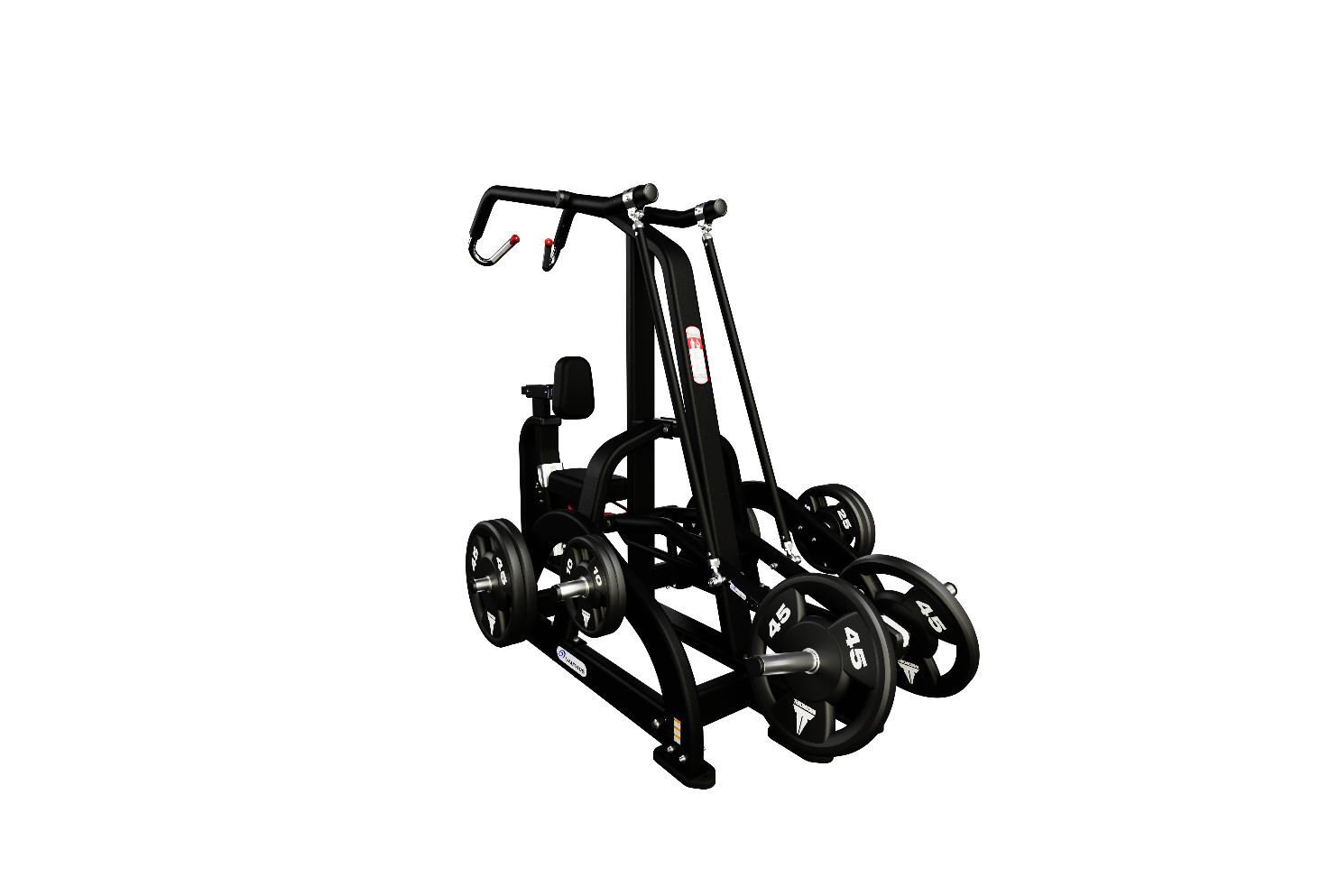

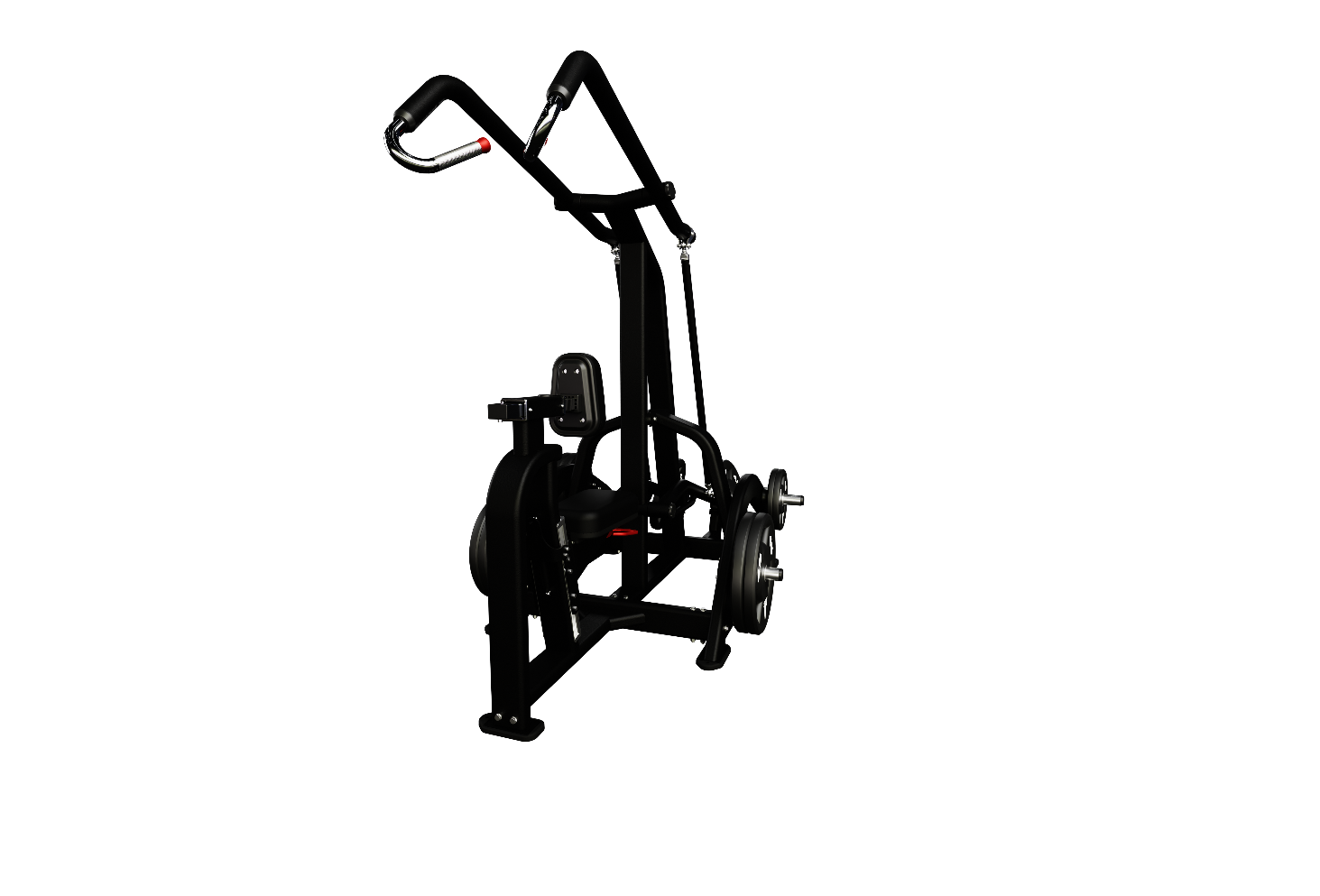

HIGH ROW 9NP-L3005
| W | 51 IN (130 CM) |
|---|---|
| L | 86 IN (218 CM) |
| H | 73 IN (185 CM) |
| STACK WEIGHT | N/A |
| OVERALL WEIGHT | 443 LB (201 KG) |
| SHIPPING WEIGHT | 582 LB (264 KG) |
ADJUSTMENTS & MOVEMENTS
| USER DEFINED RANGE OF MOTION | Fixed path |
|---|---|
| ASSISTED ADJUSTMENTS | Gas assist shock, wrap around handles on all seat height adjustments. |
| COLOR CODED PIVOT POINTS AND ADJUSTMENTS | Yes on all units |
| UNILATERAL OR BILATERAL MOVEMENT | Unilateral and bilateral use |
| CONVERGING OR DIVERGING MOVEMENTS | Converging and Diverging motion with user pre-stretch adjustment for optimal start position dependent on SKU |
| PULLEY RATIO | N/A |
WEIGHT STACK SPECIFICATIONS
| TOTAL STACK WEIGHT | N/A |
|---|---|
| INCREMENTAL WEIGHT SYSTEM | N/A |
| WEIGHT STACK TOWER HEIGHT | N/A |
| PLATE LOADED | Yes, Max capacity 270 lbs per arm, 540 lb total. Starting resistance 15 lbs per arm. |
| WEIGHT STORAGE SOLUTION | 4 weight horns to accommodate easy access |
| LNL TECHNOLOGY | N/A |
| ADD-ON RESISTANCE AVAILABLE | N/A |
| WEIGHT STACK SHROUD SPECIFICATIONS | N/A |
PRODUCT CUSTOMIZATION
We know what it takes to build an authentic, meaningful brand experience. Our customization program is the perfect way to leverage your personal brand and make a strong first impression. Get Leverage machines in a variety of custom frame color and upholstery options.
A PERFECT PARTNERSHIP
Throwdown Free Weights pair perfectly with Nautilus Strength products allowing you to get everything in one place. You can even find free weight sets crafted specifically for popular Nautilus Benches & Racks, Leverage and Plate Loaded products.
FRAME SPECIFICATIONS & CABLE INFORMATION
| STANDARD FRAME COLOR OPTIONS | Silver |
|---|---|
| STANDARD UPHOLSTERY COLOR OPTIONS | Black |
| FRAME FINISH | Electrostatic Powder coating |
| CUSTOMIZABLE PAINT OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLE | Yes with additional fees and extended lead times |
| CUSTOMIZABLE BRANDING OPTIONS AVAILABLE | No |
| CABLE VS. BELT DRIVEN TRANSMISSION | Belt & Lever Drive |
| BOLT DOWN LOCATIONS DEFINED | Yes |
| INTEGRATED LEVELING SYSTEM | No, rubber feet for floor protection |
| HARDWARE TYPE | Hex / Button Head |
| TUBBING STYLE & THICKNESS | Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga |
| HEIGHT | Changes per unit yet mostly 60" |
USER SPECIFIC INFORMATION
| STATIC PLACARDS | Start finish diagram with stating weight included |
|---|---|
| MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLE | Yes |
| ANIMATED LENTICULAR | No |
| SAFETY CATCH & STOPS | Yes, where applicable |
| WATER BOTTLE HOLDER | No |
| PHONE HOLDER | No |
| GRIP SPECIFICATIONS | Stainless steel knurled grip with red accent |
| FOOT PLATFORM | Oversized rubber non slip foot platform |
| CONTOURED PADS | Yes, contoured back pads on select machines with lumbar support |
| BELT STABILIZATION SYSTEM | No |
