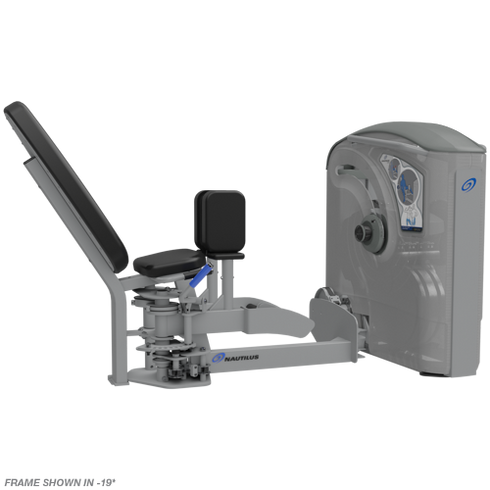

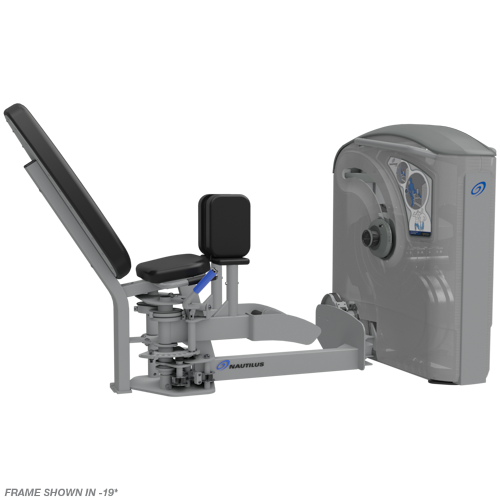

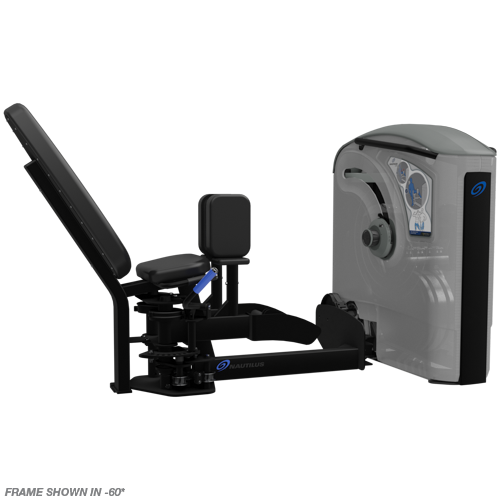

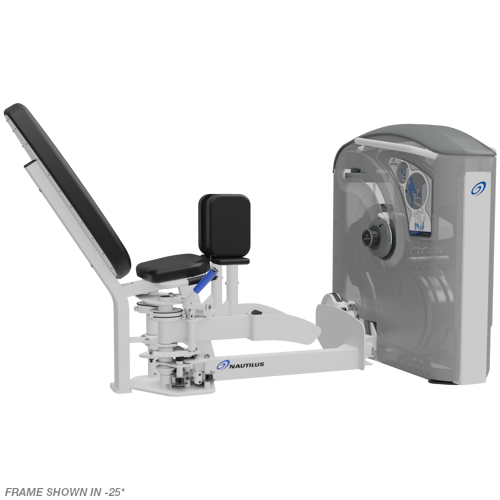

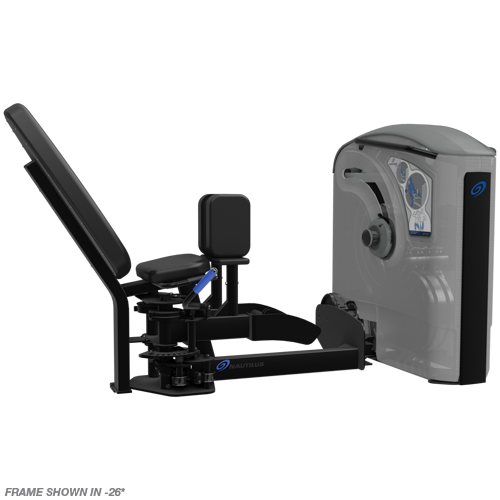

Nautilus One™ Hip Abduction/Adduction

Nautilus One™ Hip Abduction/Adduction
Nautilus One™ Hip Abduction/Adduction
Nautilus One™ Hip Abduction/Adduction
Nautilus One™ Hip Abduction/Adduction

Nautilus One™ Hip Abduction/Adduction

  • Sale
  • Regular price $7,999.00


icon image

No Interest Financing

Delivery Options (select at checkout)

  • icon image

    Delivery, Installation & Setup:

  • icon image

    Free Delivery:

  • icon image
  • icon image

    Keeping you and our employees safe


DETAILS

DIAL “ONE” FOR UNPRECEDENTED RESULTS

Nautilus One™ equipment combines revolutionary weight stack technology and the most intuitive and user-friendly selection method ever created: a dial. Our unique 4-bar linkage and specialized cam design provides smooth resistance and proper muscle loading through the complete range of motion, while fewer guide rods, cams and pulleys extend the life of this product well past other machines. For a unique, safe and effective strength training experience, there is only ONE choice that will ensure your facility stands out from your competition.

 W: 41 IN (104 CM)
L: 87 IN (221 CM)
H: 48 IN (122 CM)
STACK WEIGHT: 255 LB (116 KG)
 OVERALL WEIGHT: 857 LB (390 KG)
SHIPPING WEIGHT: 880 LB (399 KG)

*Frames colors 13, 25, 26, and 60 are available at no cost but longer lead times apply, varies by region.

FEATURES

  • Maximum muscle involvement with minimum knee and back stress in a compact footprint
  • Four-bar linkage technology controls position and angle of foot platform and provides optimal biomechanics
  • Low height and integrated handle on platform to assist entry/exit
  • Extra wide platform allows varying foot placement
  • Standard 250 lbs (125 kg) patented dial weight selection technology, with a 5 lbs (2.5 kg) incremental weight switch
  • Optional 1 lb or 0.5 kg increments weight switch available on all machines

UNIQUE WEIGHT SELECTION DIAL

Now weight selection is as easy as turning a dial. The unique weight selection dial is easily recognizable and always within reach from the seated position - no more bending down, reaching behind or standing up to adjust weight selection. Nautilus One® has no guide rods and no weight stack pins, which means less maintenance and downtime.

INNOVATIVE ANDUNIFIED TOWERS

Genius in its simplicity, the Nautilus One line features compact unified towers, each with patented weight stack technology and the unique weight selection dial. Plates are stacked side-by-side with minimal use of pulleys and belts to allow for natural movement mechanics that give a smooth, plate-loaded workout feel from a selectorized machine.

HIP ABDUCTION/ADDUCTION S6AA

W41 IN (104 CM)
L87 IN (221 CM)
H48 IN (122 CM)
STACK WEIGHT255 LB (116 KG)
OVERALL WEIGHT857 LB (390 KG)
SHIPPING WEIGHT880 LB (399 KG)

ADJUSTMENTS & MOVEMENTS

USER DEFINED RANGE OF MOTIONYes on select models
ASSISTED ADJUSTMENTSYes, gas assist
COLOR CODED PIVOT POINTS AND ADJUSTMENTSYes on all units
UNILATERAL OR BILATERAL MOVEMENTUnilateral and Bilateral dependent on SKU
CONVERGING OR DIVERGING MOVEMENTSYes, unit dependent; converging movement arms with multiple hand position options for a variety of movement options
PULLEY RATION/A

FRAME SPECIFICATIONS & CABLE INFORMATION

STANDARD FRAME COLOR OPTIONSSilver, White, Black
STANDARD UPHOLSTERY COLOR OPTIONSBlack
FRAME FINISHElectrostatic Powder coating
CUSTOMIZABLE PAINT OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE UPHOLSTERY OPTIONS AVAILABLEYes with additional fees and extended lead times
CUSTOMIZABLE BRANDING OPTIONS AVAILABLEYes with additional fees and extended lead times
CABLE VS. BELT DRIVEN TRANSMISSIONBelt drive
BOLT DOWN LOCATIONS DEFINEDYes
INTEGRATED LEVELING SYSTEMNo
HARDWARE TYPEHex / Button Head
TUBBING STYLE & THICKNESSModern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga
HEIGHTMachine dependent
WIDTHMachine dependent
LENGTHMachine dependent
SHIPPING WEIGHTMachine dependent

USER SPECIFIC INFORMATION

STATIC PLACARDSQR code scans showing instructional videos, machine dependent
MULTI-LANGUAGE PLACARDS OPTIONS AVAILABLELarge and graphical, limited text to eliminate translation requirements
ANIMATED LENTICULARAnimated lenticulars, showing start and stop positions
SAFETY CATCH & STOPSN/A
WATER BOTTLE HOLDERYes, integrated into top cap of shroud
PHONE HOLDERYes, integrated into top cap of shroud
GRIP SPECIFICATIONSErgo Grip, rubber handles
FOOT PLATFORMMachine dependent; low height and integrated handle on platform to assist entry/exit
CONTOURED PADSYes, contoured back pads on select machines
BELT STABILIZATION SYSTEMNo

WEIGHT STACK SPECIFICATIONS

TOTAL STACK WEIGHTMachine dependent
INCREMENTAL WEIGHT SYSTEMYes, all machines can be purchased with the standard 250 lb. weight system, which features incremental, adjustable in 1 lb. increments. Each machine is upgradeable to the 425 lb. weight system, adjustable in 25 lb. increments; incremental weights are adjustable in 5 lb.
WEIGHT STACK TOWER HEIGHTStandard, low profile 47” height on all products
PLATE LOADEDN/A
WEIGHT STORAGE SOLUTIONN/A
WEIGHT SELECTIONPatenting One dial select technology
ADD-ON RESISTANCE AVAILABLEYes, available in 1lb increments for our standard 250 lb (1250 kg) and 5lb increments for our 425 lb (200 kg) configurations
WEIGHT STACK SHROUD SPECIFICATIONSMolded plastic, available in either Clear or Black
