DETAILS

THE STATIONARY BIKE GETS A BAD ATTITUDE.

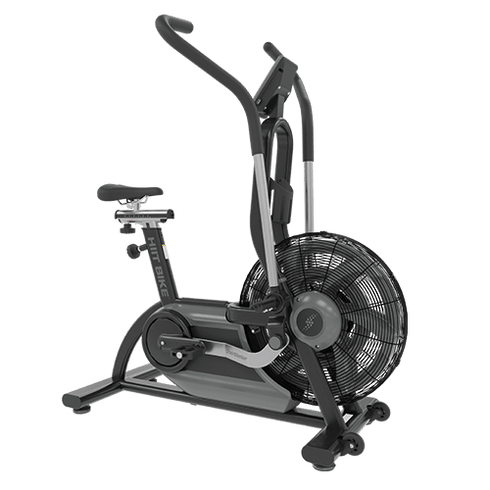

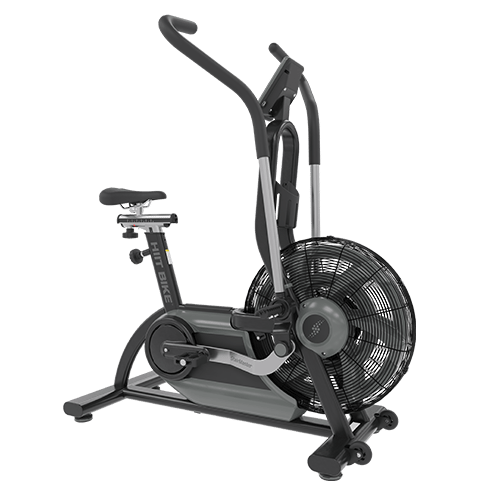

 The name known for some of the most demanding workouts in the gym now has a new workout your members will love to hate. Tested to withstand 1400 lbs of force, the StairMaster® HIIT Bike™ offers a robust design and features dual action wind resistance that provides a total body cardio workout. The HIIT Bike is designed to push you past your breaking point and keep working long after you can’t.

 W: 29 IN (74 CM)
L: 51 IN (130 CM)
H: 58 IN (147 CM)
MAX USER WEIGHT: 350 LBS (159 KG)
MACHINE WEIGHT: 146 LBS (66 KG)
SHIPPING WEIGHT: 168 LBS (76 KG)

*Frames colors 13, 25, 60 and 79 are available at no cost but longer lead times apply, varies by region.

FEATURES

  • New pedal system makes switching in HIIT workouts quicker and easier
  • New console position and shorter handle bars fro improved console access
  • Dual-action wind resistance provides a total body workout
  • Bright user-friendly led display with key metrics
  • Robust heavy-gauge welded steel construction backed by a leading Full commercial warranty
  • HIIT console with easy to read backlit display, Bluetooth & ANT+ connectivity, and programmable time, distance, calories, time interval, and calorie interval programs
  • User compatible size range typically 4’11” to 6’8” (150 to 203 cm) tall

HOME OF HIIT

Leverage StairMaster’s unique HIIT products to attract new members, or learn to market your own exciting HIIT program to create a new source of revenue for your facility.

Learn More

STAIRMASTER HIIT PROGRAMMING

Have your trainers and coaches HIIT certified by our Master Instructors, leverage our unique HIIT products to attract members and learn to market your own exciting HIIT program to create a new source of revenue for your facility

TRACK YOUR INTENSITY

Track your workout with detailed metrics, follow one of the built in workout programs, and connect to your phone via Bluetooth to save and share your workout. The console also comes equipped with ANT+ giving you the ability to pair with heart rate trackers and connect to group displays.

HIIT BIKE 9-4650

LENGTH51 in (130 cm)
WIDTH29 in (74 cm)
HEIGHT58 in (147 cm)
RESISTANCE TECHNOLOGYDual action wind resistance
SEATAirfit Saddle
SEAT ADJUSTMENTHeight - pop pin, Fore/Aft - micro-adjustment
PEDAL SYSTEMMorse Taper
WATER BOTTLE HOLDERYes
COLOR SCHEMEWrinkle Black
FRAME CONSTRUCTIONHeavy-gauge welded steel construction
FINISHElectro-static powder-coat
CONSOLEStairMaster HIIT
POWER REQUIREMENTNA
MAX USER WEIGHT350 lbs (159kgs)
USER HEIGHT RANGE4 ft 11 in to 6 ft 8 in (150 to 203 cm)
MACHINE WEIGHT146 lbs (66kg)
SHIPPING DIMENSIONS50 in x 21 in x 27 in (127 cm x 53 cm x 68 cm)
SHIPPING WEIGHT168 lbs (76 kg)

HIIT CONSOLE

DISPLAY TYPEFixed Segment LCD
DISPLAY AREA13.8in2
BACKLIGHTYes
# METRICS DISPLAYED5
# PROGRAMS5
CUSTOM PROGRAMS5 (Time, Distance, Calories, Time Interval, Calorie Interval)
POWER REQUIREMENTPower two C cell batteries or an optional external power supply can be ordered
5 GHZ HEART RATEYes
ANT+ HEART RATEYes
ANT+ L. BOARD SIGNALYes
BLE CONNECTIVITYYes
MULTI-LANGUAGE OPTIONSNo
QUICK START OPTIONSYes
BLUETOOTH DATA TRACKINGYes
USB SOFTWARE UPLOADYes
